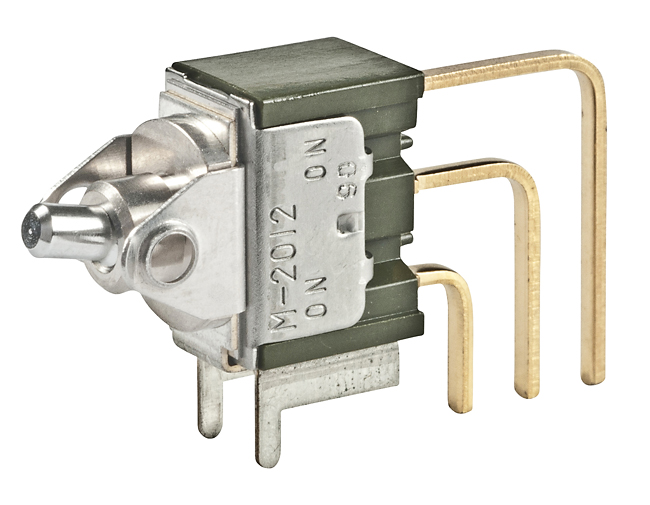

NKK Switches M2012TXG41 Miniature Rocker Switch
A miniature rocker switch featuring multiple functions, designed for compact electronic applications. It provides reliable switching with multiple operational options in a small form factor.
NKK Switches M2012TXG41 Miniature Rocker Switch Specifications:
- Power Level: 6A @ 125V AC & 3A @ 250V AC
- Logic Level: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations for silver; 50,000 for gold
- Angle of Throw: 25°
- Material (Actuator Clip & Mounting Frame): Stainless Steel
- Body Frame: Stainless Steel
- Case: Diallyl phthalate resin UL94V-0
- Movable Contactor: Phosphor bronze with silver or gold plating
- Movable Contacts: Silver alloy or copper with gold plating
- Stationary Contacts: Silver alloy, copper or brass with silver or gold plating
- Terminals: Copper or brass with silver or gold plating
- Operating Temp Range: -30°C through +85°C
- Humidity: 90-95% RH for 96 hours at 40°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration
- Soldering: Wave or manual soldering as per profiles in supplement
- Flammability Standards: UL 94V-0
- UL Recognition: File No. E44145
- CSA Certification: File No. 023535_0_000
Buy the Buy NKK Switches M2012TXG41 Miniature Rocker Switch Part Number M2012TXG41 Online
Order NKK Series M miniature rocker switches online today and ensure reliable performance in your electronic and industrial applications. These switches feature high durability, multiple configurations, and meet industry standards for safety and performance. Perfect for compact electronic systems requiring precise switching. With easy online access, you can quickly incorporate these high-quality switches into your design. Trust NKK's quality and reliability for your control solutions. Buy now and enhance your project’s durability and functionality easily from your favorite distributor.
Get NKK Series M miniature rocker switches today—built for precision and long-lasting durability in electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches M2012TXG41?
You can click on the BUY or RFQ button to purchase M2012TXG41 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2012TXG41?
You can download the M2012TXG41 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2012TXG41?
NKK Switches
