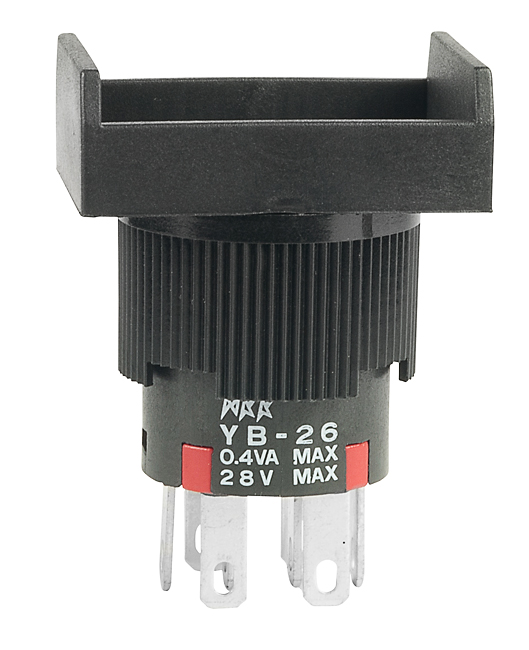

NKK Switches YB26RKG01 Short Body Pushbutton
A short body illuminated pushbutton designed for panel mounting applications. Suitable for easy operation and visual indication in various control panels.
NKK Switches YB26RKG01 Short Body Pushbutton Specifications:
- Power Level (silver): 3A @ 125/250V AC
- Logic Level (gold): 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Nominal Operating Force: 100-160N depending on mounting type
- Pretravel: 0.059” (1.5mm); Overtravel: 0.059” (1.5mm); Total Travel: 0.118” (3.0mm)
- Housing/Bezel Material: UL94V-0 Glass fiber reinforced polyamide
- Switch Terminals: Solder Lug/.110” (2.8mm), Quick Connect
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for nonilluminated
- Environmental: IP65 splashproof, 96 hours @ 40°C humidity resistance, 50G shock testing
- Mounting Torque: 0.785Nm (6.95 in-lb)
- Standards & Certifications: UL Recognized (File No. E44145), CSA Certified (File No. 023535_0_000)
Buy the NKK Series YB Short Body Pushbuttons: YB26RKG01
Purchase the short body illuminated pushbutton online today for reliable panel control. Featuring bright LED indicators, tactile feedback, and splashproof IP65 sealing, this switch ensures long-lasting performance in industrial environments. Designed for easy installation with solder lug or quick connect terminals, it supports high electrical capacity and withstands harsh conditions. Ideal for automation, machinery, and control panels, it offers excellent durability, multiple illumination options, and certified safety standards. Order now for quick delivery and seamless integration into your control systems.
Get NKK Series YB Short Body Pushbuttons today—built for precision, durability, and easy control panel operation.
Frequently Asked Questions
Where can I buy NKK Switches YB26RKG01?
You can click on the BUY or RFQ button to purchase YB26RKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB26RKG01?
You can download the YB26RKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB26RKG01?
NKK Switches
