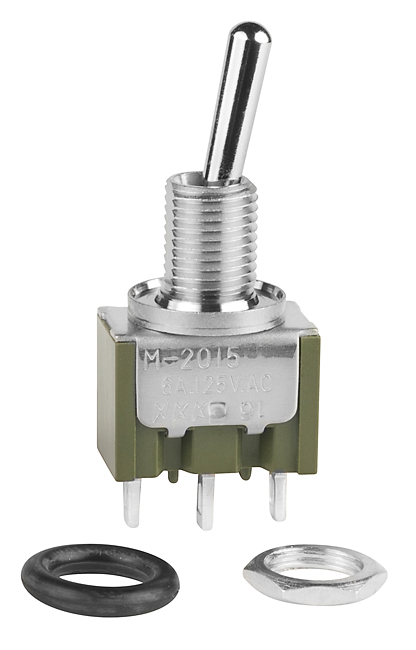

NKK Switches M2015SD3W01 Miniature Toggle Switch
This is a miniature toggle switch with multi-function capabilities, suitable for various electronic applications. It features a compact design for easy integration into control panels or circuit boards.
NKK Switches M2015SD3W01 Miniature Toggle Switch Specifications:
- Poles & Circuits: 2-SPST, DPST, 3PDT, 4PDT
- Contact Rating: 6A @ 125V AC, 3A @ 250V AC, 0.4VA @ 28V DC
- Contact Resistance: 10 milliohms max for silver; 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min; 1,500V AC between contacts and case for 1 min
- Mechanical Life: minimum 100,000 operations; 50,000 for flat, locking & splashproof devices
- Electrical Life: 25,000 operations min for silver, 50,000 for gold
- Operating Temperature: -30°C to +85°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration
- Sealing: Splashproof options available meeting IP67
- Mounting Torque: 3.0Nm for large bushing, 1.5Nm and 0.7Nm for others
- Material: Brass with chrome plating, support brackets of brass with tin plating, case of diallyl phthalate UL94V-0
- Terminals: Solder lug, quick connect, epoxy sealed terminals
- Standards & Certifications: UL recognized, CSA certified with ratings of 6A at 125V AC and 3A at 250V AC
Buy the Buy NKK Miniature Toggle Switch Part Number M2015SD3W01 Online
Order the NKK miniature toggle switch M2015SD3W01 online today for high performance, durability, and versatile circuit applications. Engineered for precise switching, it features multiple circuit configurations including SPST, DPST, and 3PDT. Its robust construction ensures longevity with up to 100,000 mechanical cycles and certifications for safety standards. Ideal for control panels, automation, and electronic projects, the switch offers ease of installation with various terminal options like solder lug and quick connect. Purchase online now for reliable, high-quality switching solutions at competitive prices.
Get NKK M2015SD3W01 today—designed for reliability and long-lasting performance in electronic control systems.
