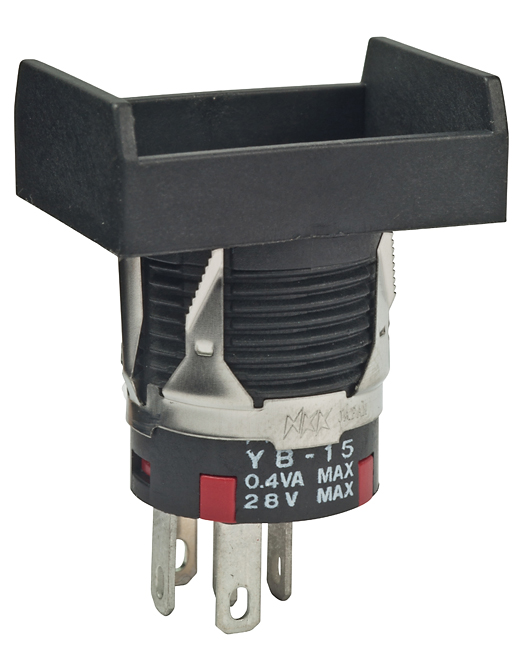

NKK Switches YB15NKG01 Short Body Pushbutton Switch
A short-bodied, illuminated pushbutton switch designed for panel mounting applications. Suitable for control panels requiring easy-to-operate and visible pushbutton functionalities.
NKK Switches YB15NKG01 Short Body Pushbutton Switch Specifications:
- Power Level (silver): 3A @ 125/250V AC
- Logic Level (gold): 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 min; 1,500V AC min. between contacts & case for 1 min
- Mechanical Life: 1,000,000 operations minimum for momentary circuit
- Electrical Life: 200,000 operations minimum for maintained circuit
- Nominal Operating Force: 1.47N for nonsealed, 1.67N for sealed (single pole)
- Contact Timing: Nonshorting (break-before-make)
- Travel: PreTravel 0.059” (1.5mm); Overtravel 0.059” (1.5mm); Total Travel 0.118” (3.0mm)
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Switch Terminals: Silver or gold-plated contacts, solder lug or quick connect
- Operating Temperature Range: -25°C through +50°C for illuminated, -25°C through +70°C for nonilluminated
- Environmental Testing: 90-95% humidity for 96 hours @ 40°C, IP65 panel seal (panel seal models)
Buy the NKK Series YB Short Body Pushbuttons: YB15NKG01
Upgrade your control panel with our durable, compact illuminated pushbutton switch from the Short Body Pushbuttons Series YB. Designed for easy mounting and visible operation, it offers reliable electrical life and resistance to environmental factors. Perfect for industrial and panel applications, it features high-quality materials, a variety of illumination options, and certified standards ensuring safety and performance. Order online today to enhance your control system's functionality with our proven switch technology.
Order your NKK Series YB Short Body Pushbuttons today and give your control panels reliable, easy-to-operate illumination solutions.
Frequently Asked Questions
Where can I buy NKK Switches YB15NKG01?
You can click on the BUY or RFQ button to purchase YB15NKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB15NKG01?
You can download the YB15NKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB15NKG01?
NKK Switches
