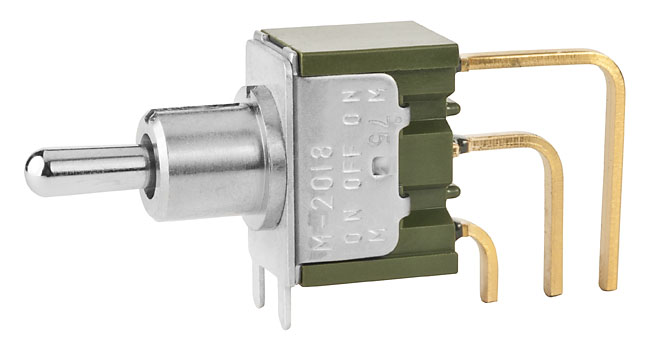

NKK Switches M2018S2A2G40 Miniature Toggle Switch
Miniature toggle switch with multiple functions, suitable for various electronic applications. Compact and reliable for inclusion in control panels and devices.
NKK Switches M2018S2A2G40 Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): Power Level 6A @ 125V AC & 3A @ 250V AC, Logic Level 0.4VA max @ 28V AC/DC, Gold over Silver ratings
- Contact Resistance: 10 milliohms max for silver; 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC contact to case for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum (gold contacts), 25,000 operations for silver
- Angle of Throw: 25°
- Materials & Finishes: Brass with chrome plating frame, stainless steel case, brass with tin plating support bracket, molded diallyl phthalate case UL94V-0
- Operating Temperature Range: -30°C to +85°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm for 1 minute
- Shock: 50G acceleration, tested in 6 directions with 5 shocks each
- Sealing: Splashproof bushing options meet IP67 standards
- Mounting Torque: 3.0Nm for large bushing; 1.5Nm for other bushings
- Soldering: Wave soldering (PC version) and manual soldering compatible, lever in OFF position during soldering
- Standards & Certifications: UL Recognized (File No. E44145), CSA Certified (File No. 023535_0_000), recognized at 6A @ 125V AC and 3A @ 250V AC, 0.4VA max @ 28V DC
Buy the Buy NKK Miniature Toggle Switch Part Number M2018S2A2G40 Online
Order the NKK M2018S2A2G40 miniature toggle switch online today and enjoy quick delivery and secure checkout. Perfect for control panels and electronic devices, this compact switch offers high durability, precise operation, and excellent electrical ratings. Its construction ensures resistance to vibration, temperature extremes, and environmental factors, making it suitable for diverse industrial and consumer applications. Elevate your project’s reliability by choosing this trusted switch for consistent, trouble-free performance across a wide range of operational conditions.
Buy NKK M2018S2A2G40 miniature toggle switch now and experience unmatched reliability and performance in your electronic applications.
Frequently Asked Questions
Where can I buy NKK Switches M2018S2A2G40?
You can click on the BUY or RFQ button to purchase M2018S2A2G40 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2018S2A2G40?
You can download the M2018S2A2G40 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2018S2A2G40?
NKK Switches
