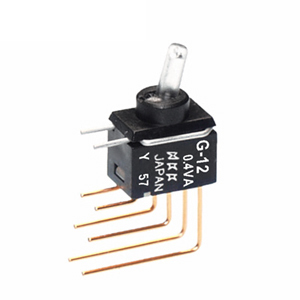

NKK Switches G12JVD Illuminated Toggle Switch
The G12JVD is an ultra-miniature illuminated toggle switch optimized for PCB mounting in space-constrained electronic applications. Featuring a compact design, it includes built-in LEDs for clear status indication in red, green, amber, or dual-color options. The switch offers high stability, contact reliability, and sealed construction to prevent contamination. Suitable for low-voltage, low-current logic circuits, it supports automated soldering and cleaning, ensuring efficient manufacturing. With a mechanical life of 100,000 operations and electrical ratings up to 0.4VA @ 28V, it provides dependable switching performance for various electronic control systems.
NKK Switches G12JVD Illuminated Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 100,000 operations minimum
- Nominal Operating Force: 1.30N
- Angle of Throw: 28°
- Actuator Material: Polyamide
- Case Material: Glass fiber reinforced polyamide
- Sealing Rings: Nitrile butadiene rubber
- Movable Contacts: Phosphor bronze with gold plating
- Stationary Contacts: Phosphor bronze with gold plating
- Base: Glass fiber reinforced polyamide
- Power Terminals: Epoxy sealed, support pin design
- Lamp Terminals: LED integrated, support pin design
- Operating Temperature Range: -25°C to +55°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-500Hz, peak-to-peak amplitude 1.5mm
- Shock: 50G acceleration
- Soldering: Wave, manual, and automated cleaning processes supported
- Standards & Certifications: Not UL or CSA recognized
