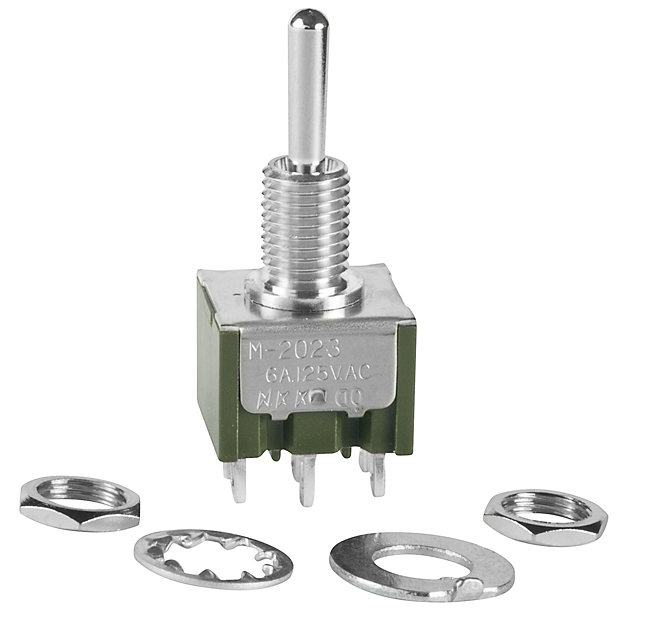

NKK Switches M2023SS4W01 Miniature Toggle Switch
Miniature toggle switch with multi-function capabilities, suitable for various electronic applications. It features a compact, reliable design with dual ratings for power and logic levels. Constructed from high-quality materials like brass, zinc, and polycarbonate, it offers excellent insulation, durability, and resistance to environmental factors. The switch supports multiple pole configurations, with rated currents of 6A at 125V AC and 3A at 250V AC. Its sealed terminals and robust mounting options make it ideal for reliable performance in demanding electronic and industrial systems.
NKK Switches M2023SS4W01 Miniature Toggle Switch Specifications:
- Poles & Circuits: SPST, DPST, DPDT, 4PDT configurations
- Rated Current: 6A at 125V AC & 3A at 250V AC
- Voltage Rating: 125V AC, 250V AC, 28V DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: 1000 megohms min at 500V DC
- Dielectric Strength: 1000V AC contact, 1500V AC contact-to-case
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum for gold contacts
- Operating Temperature Range: -30°C to +85°C
- Vibration & Shock: 10-55Hz, 50G acceleration tested
- Sealing: Splashproof options meet IP67
- Mounting Torque: 3.0Nm or 1.5Nm depending on bushing size
- Material: Brass with chrome plating, polycarbonate cases, zinc or nickel-plated bushings
- Standards & Certifications: UL, CSA recognized; UL94V-0 flammability rating
- Environmental: Humidity 90-95% @ 40°C for 96 hours
Buy the NKK Series M Miniature Toggle Switch: M2023SS4W01
Buy the NKK Series M Miniature Toggle Switch M2023SS4W01 online now to experience dependable switching in demanding electronic environments. This compact switch offers dual ratings, multiple circuit configurations, sealed terminals, and robust materials, making it ideal for industrial and consumer applications. Its high durability, IP67 sealing options, and certifications ensure safety and reliable performance. Suitable for various system needs, this switch enhances your project's reliability and longevity. Purchase today to elevate your electronic assembly quality with a trusted, high-performance toggle switch.
Order your NKK Series M Miniature Toggle Switch M2023SS4W01 today and ensure reliable switching performance in your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches M2023SS4W01?
You can click on the BUY or RFQ button to purchase M2023SS4W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2023SS4W01?
You can download the M2023SS4W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2023SS4W01?
NKK Switches
