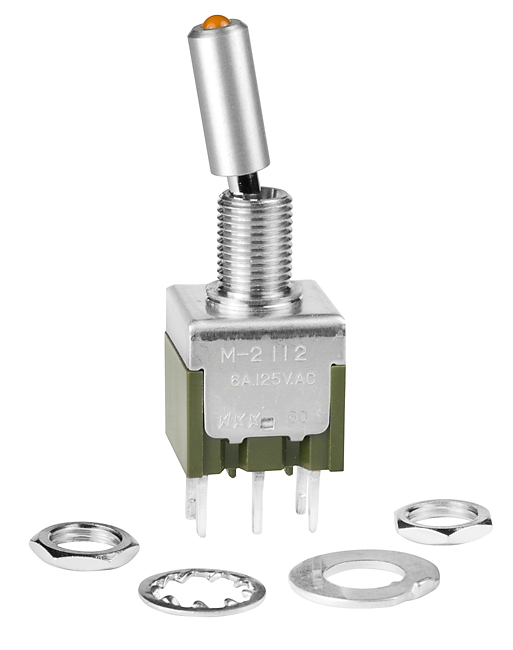

NKK Switches M2112LEW03 Illuminated Toggle Switch
This miniature illuminated toggle switch is designed for PCB mounting, featuring solder lug terminals for reliable connection. Its compact size makes it ideal for panel applications with limited space, providing convenient switching functions. The switch includes built-in LED illumination, available in various colors, enhancing visibility and status indication in electronic and control systems. It operates with a resistive load capacity of 6A at 125V AC, with durable materials for longevity and resistance to environmental factors. Easy to install and compatible with standard mounting configurations, this switch is perfect for appliances, automation, and instrumentation.
NKK Switches M2112LEW03 Illuminated Toggle Switch Specifications:
- Power Level: 6A @ 125V AC, 3A @ 250V AC
- Resistive Load Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 10 milliohms max for silver; 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts; 1,500V between contacts & case
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Operating Temperature Range: -25°C to +70°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz with 1.5mm amplitude for 2 hours in 3 directions
- Shock: 50G acceleration in 6 directions
- Materials: Brass with nickel plating, stainless steel, silver contact alloy
- Mounting: PCB mounting with solder lug terminals
- LED Voltage: 28V AC/DC, various colors available
- LED Forward Current: 20mA to 30mA
- LED Reverse Voltage: 4V
- LED Forward Voltage: 2.0V to 2.1V
