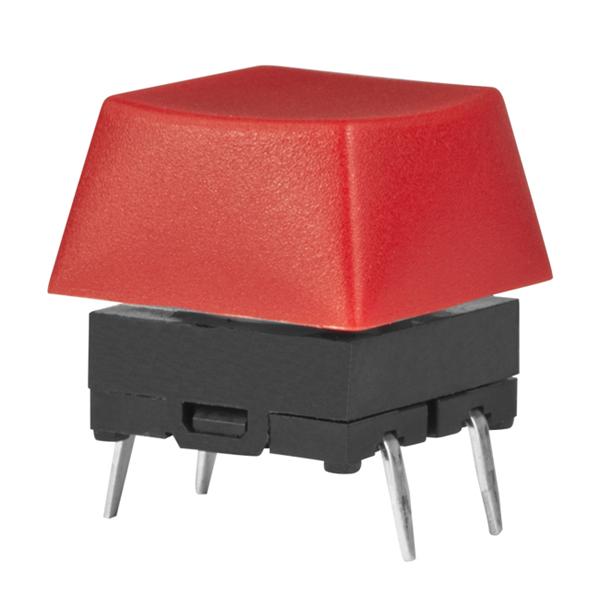

NKK Switches JB15KP1C Low Profile Tactile Switch
A low-profile tactile switch designed for PCB applications. Suitable for compact electronic devices, it features sealed construction with rubber seals for contact protection, crisp tactile feedback, and high reliability up to 5 million operations. The switch includes straight and right-angle PC terminals, offers various actuator options such as flat, sculptured, and extended, and conforms to industry standards with IP67 sealing and UL94V-0 rated case. Ideal for automation, control panels, and electronic equipment requiring compact, durable tactile inputs.
NKK Switches JB15KP1C Low Profile Tactile Switch Specifications:
- Electrical Capacity (Resistive Load): 50mA @ 24V DC (Standard), 125mA @ 24V DC (High Operating Force)
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 5,000,000 operations min
- Electrical Life: 5,000,000 operations min
- Nominal Operating Force: 1.76N for JB15, 2.65N for JB1SH
- Total Travel: 0.010" (.250mm) to 0.012" (.300mm)
- Actuator Types: Flat, Sculptured, Extended, with various colors
- Materials & Finishes: Polycarbonate, PBT, Phosphor bronze, Stainless steel
- Sealing: IP67 (IEC60529)
- Operating Temperature Range: 25°C to +70°C
- Vibration: 10-55Hz, 1.5mm amplitude
- Shock: 50G acceleration
- Soldering: Wave, manual, automated cleaning compatible
- Standards: UL94V-0 case & base, UL recognized
Buy the NKK Series JB Low Profile Tactile Switch: JB15KP1C
Enhance your electronic designs with the NKK series JB low-profile tactile switch, featuring sealed construction, multiple actuator options, and long lifespan of up to five million operations. Perfect for automation, control panels, and space-constrained devices, it provides crisp tactile feedback and conforms to industry standards for safety and reliability. Easy to solder with wave, manual, and automated cleaning options available, making it ideal for manufacturers seeking durable, compact, and high-performance tactile switches online.
Buy NKK JB15KP1C low-profile tactile switch now and experience unmatched reliability and performance in compact electronic and industrial control applications.
Frequently Asked Questions
Where can I buy NKK Switches JB15KP1C?
You can click on the BUY or RFQ button to purchase JB15KP1C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JB15KP1C?
You can download the JB15KP1C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JB15KP1C?
NKK Switches
