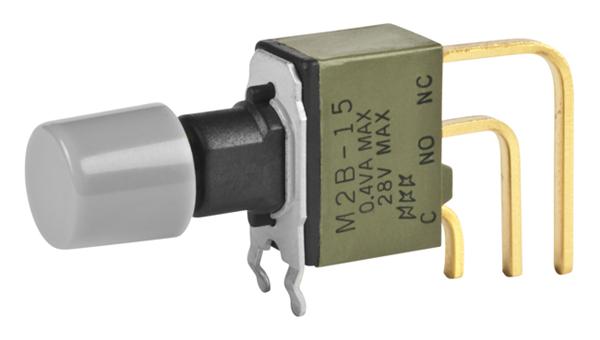

NKK Switches M2B15BA5G40BH Miniature Pushbutton
This miniature pushbutton switch offers reliable momentary operation with a compact design, suitable for electronic device interfaces and panel mounting. Its sealed construction protects against liquids and contaminants, ensuring durability in various environmental conditions. The switch features a 1A @ 125V AC or 1A @ 30V DC electrical capacity, with a total travel of 0.039 inches and pretravel of 0.023 inches. Constructed with nickel-plated brass and UL94V-0 rated glass fiber reinforced polyamide, it meets UL and CSA standards for safety and reliability. Ideal for control panels and electronic systems requiring rugged switches with precise actuation.
NKK Switches M2B15BA5G40BH Miniature Pushbutton Specifications:
- Electrical Capacity: 1A @ 125V AC or 1A @ 30V DC
- Total Travel: 0.039 inches (1.0 mm)
- Pretravel: 0.023 inches (0.6 mm)
- Material: Nickel-plated brass, UL94V-0 rated polyamide
- Sealing: O-ring at actuator top and ultrasonic welded housing
- Operating Temp Range: -30°C to +85°C
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Contact Resistance: 20 milliohms maximum for silver contacts
- Dielectric Strength: 1,000V AC between contacts for 1 minute
- Electrical Life: 200,000 operations minimum
- Mechanical Life: 100,000 operations minimum
- Certifications: UL, CSA recognized
Buy the Buy Manufacturer Process Sealed Miniature Pushbutton Part Number M2B15BA5G40BH Online
Purchase the Manufacturer Process Sealed Miniature Pushbutton M2B15BA5G40BH online today and enhance your electronic control systems. This compact switch provides reliable momentary contact performance, sealed protection against dust and liquids, and meets UL and CSA standards. With a total travel of just 0.039 inches and a pretravel of 0.023 inches, it offers precise actuation. Made from durable nickel-plated brass and UL94V-0 rated polyamide, it ensures longevity and safety. Perfect for control panels, automation, and electronic interface applications requiring rugged, space-saving switches.
Order your Manufacturer SeriesM2 M2B15BA5G40BH compact sealed pushbutton today and equip your electronic projects with dependable, high-quality switches.
Frequently Asked Questions
Where can I buy NKK Switches M2B15BA5G40BH?
You can click on the BUY or RFQ button to purchase M2B15BA5G40BH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2B15BA5G40BH?
You can download the M2B15BA5G40BH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2B15BA5G40BH?
NKK Switches
