NKK Switches MB2411A1G40FA Miniature Pushbutton Switch
A miniature pushbutton switch designed for momentary operation, suitable for electronic panel applications requiring reliable and compact user input.
NKK Switches MB2411A1G40FA Miniature Pushbutton Switch Specifications:
- Switch Type: Snap-Action
- Mounting: PC Mount Bracket
- Switch Poles & Circuits: SPDT
- Contact Material: Silver over Silver
- Rating: 3A @ 125V AC, 0.4VA @ 28V AC/DC
- Cap Diameter: .201” (5.1mm)
- Bushing Diameter Options: .280” (7.1mm), .285” (7.24mm), .350” (8.9mm)
- Operation: Momentary
- Terminal Type: Straight PC with Bracket
- Hardware: Includes Hex Nut and Lockwasher
- Panel Thickness Limit: Up to .068” (1.74mm) standard hardware, up to .134” (3.40mm) with extended hardware
- Operating Force: Not specified
- Enclosure Material: Polyamide Caps, Glossy Finish
- Color Options: Black, White, Red
- Environmental Ratings: Not specified
- Additional Features: Keyway bushings, optional locking rings, multiple terminal configurations
- Certified: Not specified; UL, cULus & CSA recognition available when ordered accordingly.

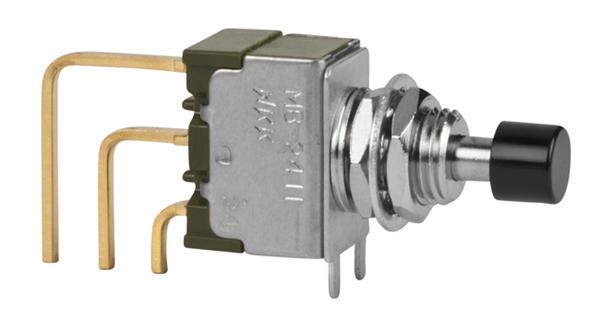

Buy the NKK MB2411A1G40FA – Reliable Pushbutton for Industrial Applications
Secure your electronic panel projects with NKK's miniature pushbutton switch. Designed for reliable momentary operation, it offers a compact and robust solution suitable for industrial automation, control panels, and user interfaces. Easy to install with straight PC mount terminals and available in multiple sizes and colors, this switch ensures durability and consistent performance. Perfect for demanding environments, it features high electrical ratings and versatile mounting options, making it the ideal choice for engineers and technicians seeking quality control components online.
Buy NKK MB2411A1G40FA pushbutton now and experience unmatched reliability and performance for your electronic panel needs.
Frequently Asked Questions
Where can I buy NKK Switches MB2411A1G40FA?
You can click on the BUY or RFQ button to purchase MB2411A1G40FA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2411A1G40FA?
You can download the MB2411A1G40FA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2411A1G40FA?
NKK Switches
