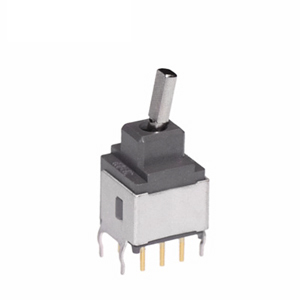

NKK Switches A22HB Toggle Switch
Subminiature toggle switch known for its compact size, high reliability, and precise switching suitable for low-voltage, low-current circuits in electronic devices and control systems. Engineered to provide stable, smooth actuation with a sealed body construction to prevent contact contamination. Designed for automated soldering and cleaning with standard PCB terminal spacing. Features include a robust metal toggle, epoxy sealed terminals, and options for different toggle sizes and contact arrangements. Ideal for space-constrained electronic applications, ensuring enhanced performance and durability over extended operational life.
NKK Switches A22HB Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC maximum
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggles, 2.73N (momentary); 1.84N (maintained) for all other toggles
- Materials: Glass fiber reinforced polyamide toggle, nickel plated brass case, phosphor bronze contacts with gold plating, brass terminals
- Environmental: -30°C to +85°C, 90-95% humidity for 240 hours, shock and vibration tested up to 50G
- Soldering: Wave soldering recommended, manual and automated cleaning available
- Standards & Certifications: Not tested for UL recognition or CSA certification
Buy the NKK A22HB – Reliable Toggle Switch for Electronic and Control Applications
Purchase the NKK toggle switch A22HB today online for your electronic and control circuit needs. Engineered for space efficiency, with sealed construction to prevent contact contamination and ensure reliable operation. Features include epoxy sealed terminals, standard PCB terminal spacing, and options for different toggle sizes and contact arrangements. Suitable for low-voltage, low-current applications, this switch offers high durability, smooth actuation, and long-term performance, making it ideal for automation, instrumentation, and control systems requiring compact and dependable components.
Get NKK A22HB toggle switch today—built for precision and long-lasting durability in space-constrained electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches A22HB?
You can click on the BUY or RFQ button to purchase A22HB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A22HB?
You can download the A22HB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A22HB?
NKK Switches
