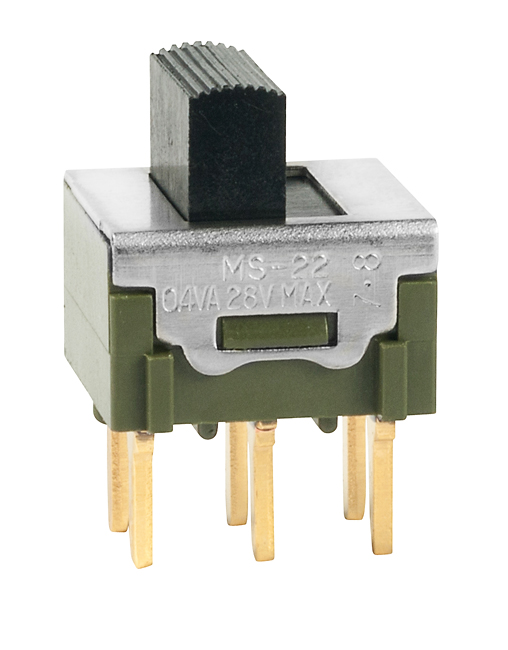

NKK Switches MS22BNG03 Miniature Slide Switch
A miniature slide switch designed for soldering and PCB applications. It offers reliable switching in compact electronic devices, featuring double pole and vertical PC terminals, with mechanical and electrical durability suitable for various electronic circuits.
NKK Switches MS22BNG03 Miniature Slide Switch Specifications:
- Poles & Circuits: Double Pole, Double Throw
- Contact Materials & Ratings: Silver over Silver, 6A @ 125V AC & 3A @ 250V AC; Gold over Brass or Copper, 0.4VA max @ 28V AC/DC
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 25,000 operations for silver, 50,000 for gold
- Contact Resistance: 10 milliohms maximum for silver, 20 milliohms maximum for gold
- Dielectric Strength: 1,000V AC, 1-minute contact-to-contact, 1,500V AC contact-to-case
- Operating Temp Range: -30°C to +85°C
- Vibration & Shock: Meets durability standards with 10-55Hz vibration, 50G shock
- Soldering: Wave soldering recommended; manual soldering with Profile A
- Materials: Glass fiber reinforced PBT resin, stainless steel, phosphor bronze
- Flammability: UL94V-0 rated
- Certifications: UL Recognized, CSA Certified when ordered appropriately
Buy the NKK MS22BNG03 – Reliable Miniature Slide Switch for Industrial Applications
Order the NKK MS22BNG03 miniature slide switch online today and enhance your electronic projects with dependable switching performance. Designed for PCB and soldering applications, this switch offers excellent durability with a mechanical life of over 100,000 operations. Its double pole and vertical terminal design ensure easy mounting and reliable circuit control. Perfect for compact electronic devices, it provides high contact reliability with silver over silver contacts rated for 6A at 125V AC and 3A at 250V AC. Invest in quality and ease of installation by purchasing directly online today!
Buy NKK MS22BNG03 now and experience unmatched reliability and performance in electronic control and circuit switching.
Frequently Asked Questions
Where can I buy NKK Switches MS22BNG03?
You can click on the BUY or RFQ button to purchase MS22BNG03 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MS22BNG03?
You can download the MS22BNG03 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MS22BNG03?
NKK Switches
