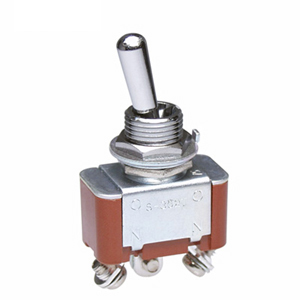

NKK Switches S302T Toggle Switch
Series S medium/high capacity toggle switches offer reliable performance with up to 50,000 mechanical and 15,000 electrical operation life cycles. Designed with brass, chrome, and zinc finishes, they meet UL, cUL, and CSA standards for resistive and inductive loads up to 25A. Features include a variety of configurations like SPST, DPST, and DPDT, with options for quick connect and screw lug terminals. Operating temperature ranges from -10°C to +70°C, suitable for industrial automation, control panels, and machinery preferred for their durability and compliance with safety standards.
NKK Switches S302T Toggle Switch Specifications:
- Electrical Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum at 500V DC
- Dielectric Strength: 2,000V AC for 1 minute
- Mechanical Life: Minimum 50,000 operations
- Electrical Life: Minimum 15,000 operations
- Contact Resistance: 10 milliohms maximum
- Operating Temperature Range: -10°C to +70°C (+14°F to +158°F)
- Mounting Torque: 2.94Nm (26 lbs-in)
- Panel Thickness: Up to 0.181 inches (4.6mm)
- Materials: Brass, steel, copper, silver, phenol, zinc plating
- Finishes: Chrome, tin, silver plating
- Standards & Certifications: UL, cUL, CSA recognized
- Terminals: Brass with tin plating
Buy the Buy Series S Switch Part Number S302T Online
Purchase your Series S toggle switch S302T online today for dependable performance in industrial applications. Designed with durable materials, it supports resistive and inductive loads up to 25A, complying with UL, cUL, and CSA standards. Easy to install with a mounting torque of 2.94Nm, it features high durability, a wide operating temperature range, and various configurations including SPST, DPST, and DPDT options. Suitable for automation, control panels, and machinery requiring robust, certified switching solutions.
Order your Series S toggle switch S302T today and ensure reliable operation for your industrial control needs with trusted safety certifications.
Frequently Asked Questions
Where can I buy NKK Switches S302T?
You can click on the BUY or RFQ button to purchase S302T from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S302T?
You can download the S302T datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S302T?
NKK Switches
