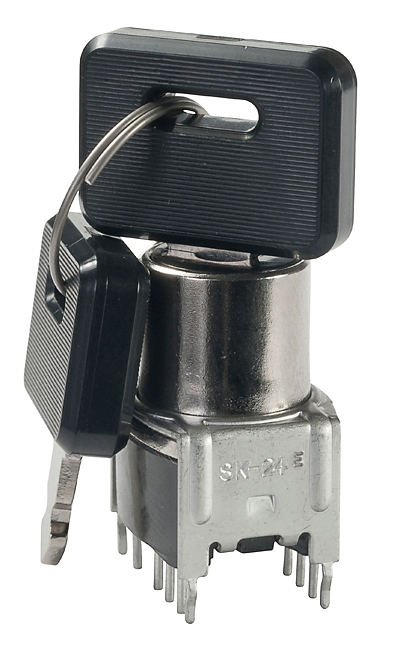

NKK Switches SK24EG13 security key lock
Miniature key lock, suitable for securing enclosures and panels. Compact design allows easy installation and reliable operation for various security applications. This process-sealed device features a sealed body construction, disposable boot for contact protection, and molded-in terminals that prevent flux and solvent ingress. The key lock offers crisp, positive detent action with a bifurcated, self-wiping contact mechanism, ensuring high logic-level reliability. Made of brass alloy with nickel plating and ABS resin handle, it supports up to 30,000 cycle lifespan and operates reliably in a temperature range of ~25°C to +70°C, with robust environmental resistance.
NKK Switches SK24EG13 security key lock Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 30,000 cycles minimum
- Electrical Life: 10,000 cycles minimum
- Nominal Operating Torque: .026Nm (.234 Ibsin)
- Contact Timing: Break-before-make
- Angle of Throw: 90°
- Boot Material: Polyvinyl chloride
- Key Material: Brass alloy with bright nickel plating
- Tumbler Barrel: Brass alloy with bright nickel plating
- Bushing: ABS resin
- Bracket: Zinc alloy with nickel plating
- Base: Steel with tin plating
- Movable Contactor: Beryllium copper with gold plating
- Stationary Contacts: Copper with gold plating
- Terminals: 2 Polyvinyl chloride Boot, straight PC terminals, suitable for automation and wave soldering
- Operating Temperature Range: ~25°C to +70°C
- Environmental Resistance: 90-95% humidity for 240 hours at 40°C, mechanical shock resistance 50G
Buy the NKK SK24EG13 – Reliable Security Lock for Industrial Applications
Secure your industrial panels and enclosures effortlessly with the NKK SK24EG13 sealed key lock. Its compact design ensures easy installation while offering high reliability, environmental resistance, and long cycle life. Made with durable brass and ABS components, it withstands harsh conditions and provides consistent performance in security applications. Whether for controlling access or safeguarding equipment, this lock's robust construction ensures safety, convenience, and peace of mind. Order online today for quick delivery and professional-grade security solutions.
Buy NKK SK24EG13 now and experience unmatched reliability and performance in securing industrial enclosures with a compact, sealed key lock design.
Frequently Asked Questions
Where can I buy NKK Switches SK24EG13?
You can click on the BUY or RFQ button to purchase SK24EG13 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part SK24EG13?
You can download the SK24EG13 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of SK24EG13?
NKK Switches
