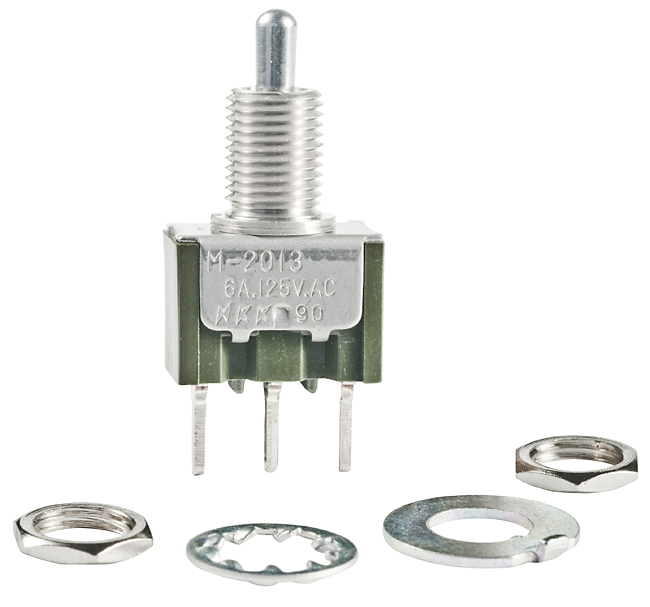

NKK Switches M2013S2S1W03 Miniature Toggle Switch
A miniature toggle switch designed for reliable performance in compact electronic devices. Features high contact resistance, insulation resistance, dielectric strength, and rated for multiple circuits with dual ratings of power and logic level. Constructed with durable materials like brass and zinc-plated steel, it supports multiple mounting options including bushing and panel mounts with splashproof options. It provides a mechanical life of up to 100,000 operations, with operational temperature range from -30°C to +85°C, and complies with UL, CSA standards for safety and durability, making it suitable for sensitive electronic switching applications.
NKK Switches M2013S2S1W03 Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): Power Level 6A @ 125V AC & 3A @ 250V AC, Logic Level 6A @ 125V AC & 3A @ 250V AC, Dual ratings of power and logic circuits
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: Minimum 100,000 operations, with models supporting splashproof and locking mechanisms
- Operating Temp Range: -30°C to +85°C
- Vibration & Shock Resistance: 10 ~ 55Hz, 50G acceleration
- Materials & Finishes: Brass with chrome plating, zinc or nickel plating, polycarbonate cases, epoxy sealed terminals
- Mounting & Soldering: Bushing mount options, wave and manual soldering compatible, panel thickness support up to 1.2 mm
- Standards & Certifications: UL Recognized, CSA Certified, compliant with IEC60529 IP67 for splashproof models
Buy the Buy NKK Miniature Toggle Switch Part Number M2013S2S1W03 Online
Purchase the high-quality miniature toggle switch online today. Designed for precision, durability, and reliable performance in electronic applications. Featuring dual ratings for power and logic circuits, splashproof options, and IP67 compliance, this switch is perfect for compact electronic devices needing secure, long-lasting switching. Easy to install with various mounting options, it withstands harsh environments with temperature range from -30°C to +85°C, and up to 100,000 operations, ensuring lasting performance. Order now for fast delivery and support.
Get NKK M2013S2S1W03 today—built for reliable switching performance with high durability and splashproof protection.
Frequently Asked Questions
Where can I buy NKK Switches M2013S2S1W03?
You can click on the BUY or RFQ button to purchase M2013S2S1W03 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2013S2S1W03?
You can download the M2013S2S1W03 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2013S2S1W03?
NKK Switches
