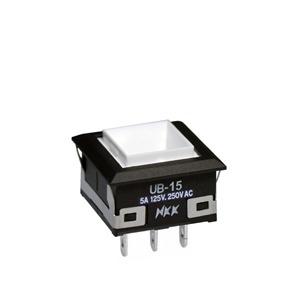

NKK Switches UB15KKW01N Illuminated Pushbutton
A low-profile, illuminated pushbutton switch suitable for through-hole PC mounting and solder connections. Designed for easy operation and reliable illumination, it features a compact form factor with full face or spot illumination options in red, amber, green, white, or blue. The switch supports quick-make, quick-break contact mechanism, durability with over 100,000 operations, and environmental resilience including high humidity and temperature conditions. Its robust construction with polyamide housing ensures reliability in industrial control applications, making it ideal for space-constrained environments requiring high performance and visibility.
NKK Switches UB15KKW01N Illuminated Pushbutton Specifications:
- Switch type: Illuminated pushbutton
- Mounting: Through-hole, PC board compatible
- Illumination: Full face or spot, LED-based, color options include red, amber, green, white, blue
- Electrical ratings: 5A @ 125/250V AC, 5A @ 30V DC, 0.4VA max @ 28V AC/DC
- Contact resistance: <50 milliohms (silver), <100 milliohms (gold)
- Insulation resistance: >200 megaohms at 500V DC
- Dielectric strength: 1,000V AC for 1 minute between contacts, case, and case grounding
- Mechanical life: 1,000,000 operations
- Electrical life: 200,000 operations for resistive load
- Nominal operating force: 1.9N (single pole)
- Travel: Pretravel 1.7mm, overtravel 0.6mm, total travel 2.3mm
- Materials: Housing made of UL94V-0 polyamide, contacts from silver alloy or gold-plated copper
- Environmental: Operating temperature -20°C to +70°C, humidity 90-95% for 96 hours at 40°C
- Standards: UL recognized, CSA certified (when ordered with marking), flammability UL 94V-0
Buy the NKK UB15KKW01N – Reliable Illuminated Pushbutton for Industrial Applications
Order the NKK UB15KKW01N illuminated pushbutton today and enhance your control systems with a compact, reliable, and highly visible switch. Designed for industrial environments, it offers quick operation, durable construction, and versatile illumination options that improve visibility and safety. Easy to install via through-hole mounting, this switch features a long electrical and mechanical lifespan, ensuring consistent performance in space-constrained panels. Purchase online now to benefit from fast delivery and expert support for your automation and control projects.
Get NKK UB15KKW01N today—built for precision and long-lasting durability in control panels and machinery.
Frequently Asked Questions
Where can I buy NKK Switches UB15KKW01N?
You can click on the BUY or RFQ button to purchase UB15KKW01N from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15KKW01N?
You can download the UB15KKW01N datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15KKW01N?
NKK Switches
