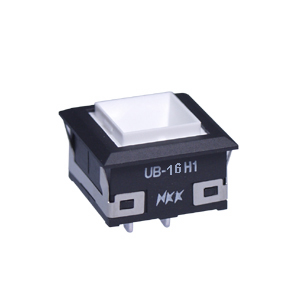

NKK Switches UB16KKG015F Low Profile Pushbutton Switch
A low-profile, illuminated pushbutton switch designed for PCBs and soldering applications. Suitable for compact electronic devices requiring easy operation and visual indication.
NKK Switches UB16KKG015F Low Profile Pushbutton Switch Specifications:
- Pole configuration: Single Pole
- Switch circuit: SPDT
- Operating temperature range: -20°C through +70°C (-4°F through +158°F)
- Contact resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation resistance: 200 megaohms minimum @ 500V DC
- Dielectric strength: 1,000V AC minimum between contacts for 1 minute and case for 1 minute
- Mechanical life: 1,000,000 operations minimum for momentary
- Electrical life: 200,000 operations minimum for resistive load of 3A @ 125V AC
- Nominal operating force: 1.9N for square & 1.9N for rectangular
- Overtravel: 0.024 inch (0.6mm); Pretravel: 0.067 inch (1.7mm); Total travel: 0.091 inch (2.3mm)
- Housing material: Glass fiber reinforced polyamide (UL94V-0)
- Illumination: Bright or super bright LEDs in multiple colors
- Switch terminals: Silver alloy or copper with gold plating
- Cap construction: Polycarbonate, with options for full face or spot illumination
- Soldering process: Wave soldering (Profile A), manual soldering (Profile A)
- Environmental conditions: Humidity 90-95% for 96 hours @ 40°C, shock 50G
- Certifications: UL Recognized, CSA Certified (order with markings)
- Panel Thickness Range: 0.039” to 0.126” (1.0mm to 3.2mm)
Buy the NKK Series UB Low Profile Pushbuttons: UB16KKG015F
Get your NKK Series UB16KKG015F low profile illuminated pushbutton switch online today. Designed for PCB mounting with durable materials and bright LEDs, it offers reliable performance in compact spaces. Perfect for electronic devices needing easy operation, visual indication, and high tolerance to environmental factors. With certifications like UL and CSA, you can trust its quality and safety standards. Enhance your project’s functionality and aesthetics by purchasing this highly reliable switch suitable for a variety of applications. Order now for quick delivery!
Order your NKK Series UB16KKG015F low profile illuminated pushbutton today and enjoy reliable, space-saving operation for your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches UB16KKG015F?
You can click on the BUY or RFQ button to purchase UB16KKG015F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16KKG015F?
You can download the UB16KKG015F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16KKG015F?
NKK Switches
