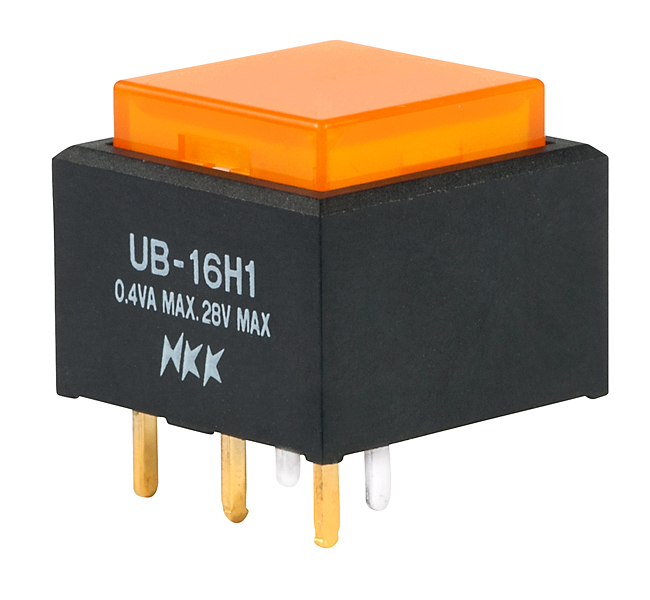

NKK Switches UB16SKG035DDD Low Profile Illuminated Pushbutton
The low-profile illuminated pushbutton switch offers a compact design ideal for PC board mounting, featuring solder terminals for reliable connections. Its bright LED illumination in various colors enhances visibility and user interaction in tight spaces. Suitable for industrial controls, automation, and user interface applications, this switch provides quick activation with tactile feedback, excellent electrical endurance, and compliance with industry standards. Its durable construction and keylock options ensure secure operation. Perfect for equipment requiring efficient space utilization and visual status indication, the switch combines functionality with aesthetic appeal in a compact form factor.
NKK Switches UB16SKG035DDD Low Profile Illuminated Pushbutton Specifications:
- Poles & Circuits: Single Pole SPST
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC contact to case for 1 minute
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA maximum @ 28V AC/DC
- Mechanical Life: 1,000,000 operations minimum for momentary
- Electrical Life: 200,000 operations minimum for resistive load
- Operating Temperature Range: -20°C to +70°C for non-illuminated; -25°C to +50°C for illuminated
- Switch Material: Glass fiber reinforced polyamide (UL94V-0), housing/bezel & base
- Cap & LED: Various colors; full face and spot illumination options
- Panel Thickness: 0.039” ~ 0.126” (1.0mm ~ 3.2mm)
- Soldering: Profile A for wave & manual soldering; hand cleaning with alcohol based solution
- Certifications: UL Recognized, CSA Certified, recognized with specific ordering codes
Buy the NKK Series UB – Reliable Switches for Industrial Applications
Purchase your NKK Series UB low-profile illuminated pushbutton switch online today to enjoy reliable performance, space-efficient design, and bright LED indicators available in multiple colors. Perfect for industrial control panels, automation systems, and user interfaces where space is limited, this switch offers tactile feedback, high electrical endurance, and compliance with industry standards. Easy to install with PCB mount terminals, it reduces assembly time while providing clear visual status indication. Get yours now and upgrade your equipment with trusted, durable components for demanding applications.
Order your NKK Series UB low-profile illuminated switch today and enhance your industrial controls with durable, space-saving design and bright LED indicators.
Frequently Asked Questions
Where can I buy NKK Switches UB16SKG035DDD?
You can click on the BUY or RFQ button to purchase UB16SKG035DDD from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16SKG035DDD?
You can download the UB16SKG035DDD datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16SKG035DDD?
NKK Switches
