NKK Switches MRX108A Rotary Switch
The MRX108-A is a single-pole, 8-position miniature power level rotary switch with shaft actuation, PC-turret terminals, and a plain black knob. Made with brass and nickel-plated bushing and housing, it features durable construction for industrial reliability. This switch provides high contact reliability via a self-cleaning sliding contact mechanism, and includes a zinc-plated steel stopper plate. It offers a maximum contact resistance of 10 milliohms, insulation resistance over 100 megaohms at 500VDC, dielectric strength of 1000VAC for one minute, mechanical life minimum 15,000 operations, and electrical life minimum 7,500 operations. Suitable for automation and control systems.
NKK Switches MRX108A Rotary Switch Specifications:
- Poles & Circuits: 1 pole, 8 positions
- Maximum Contacts Resistance: 10 milliohms
- Insulation Resistance: 100 megaohms minimum at 500V DC
- Dielectric Strength: 1000VAC for 1 minute
- Mechanical Life: 15,000 operations minimum
- Electrical Life: 7,500 operations minimum
- Contact Material: Silver alloy
- Housing Material: Brass with nickel plating
- Bushing Material: Brass with nickel plating
- Shaft Material: Brass with nickel plating
- Operating Temperature Range: -10°C to +70°C
- Panel Thickness: Maximum 0.095 inches (2.4 mm)
- Contact Type: Self-cleaning sliding contact
- Terminal Type: PC-turret
- Color: Plain Black
- Knob Style: Plain Black
- Actuator Type: Shaft actuated

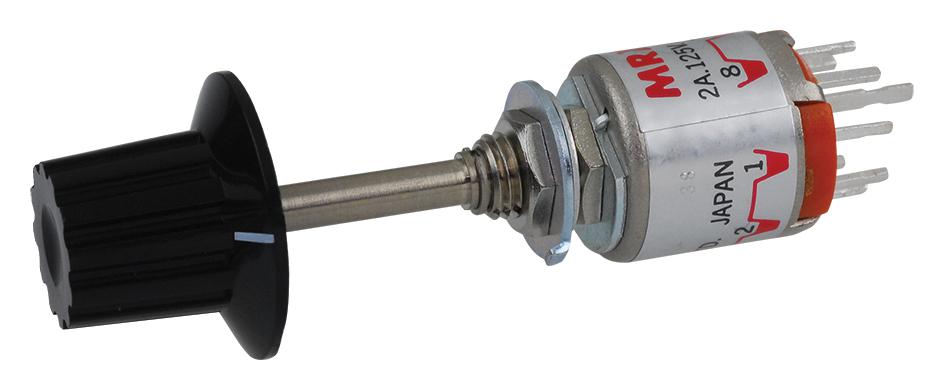

Buy the Buy NKK MRX108A Part Number MRX108A Online
Enhance your control systems with the NKK Rotary Switch MRX108A, featuring 8 positions, shaft actuation, PC-turret terminals, and robust nickel-plated brass construction. Designed for longevity and high contact reliability, this switch supports industrial automation, control panels, and equipment with its durable metal housing. Its self-cleaning contact mechanism minimizes maintenance and provides consistent performance. Utilizing high-quality materials and precise manufacturing, it guarantees minimum contact resistance and excellent insulation resistance. Whether for new designs or replacements, purchase this versatile rotary switch online for quick delivery and dependable operation in demanding environments.
Order your NKK Series MRX108A shaft actuated rotary switch today and ensure reliable control with its high contact reliability and durable construction.
Frequently Asked Questions
Where can I buy NKK Switches MRX108A?
You can click on the BUY or RFQ button to purchase MRX108A from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MRX108A?
You can download the MRX108A datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MRX108A?
NKK Switches
