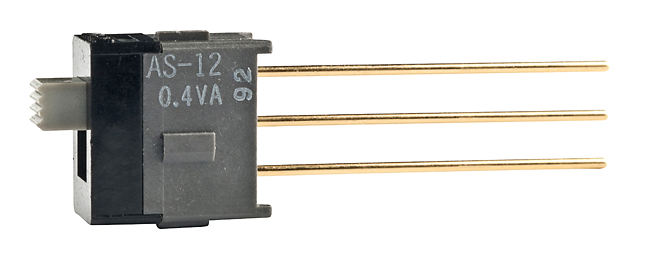

NKK Switches AS12AW Subminiature Sliding Switch
The Subminiature sliding switch offers a space-saving design with reliable and smooth operation, ideal for compact electronic devices. It features a small footprint, consistent switching performance, and durability suited for logic-level applications. The switch includes various actuator options like straight, right-angle, and vertical, with epoxy sealed or ultrasonically welded terminals to prevent contamination. Its construction uses glass fiber reinforced polyamide and carbon blended polyacetal for static prevention. Designed for low-voltage, low-current circuits, it ensures safe, dependable operation in electronic control systems.
NKK Switches AS12AW Subminiature Sliding Switch Specifications:
- Poles & Circuits: SPST, SPDT, DPDT available
- Travel: Pretravel .082" (2.1mm); Overtravel .016" (0.4mm); Total Travel .098" (2.5mm)
- Electrical Capacity: 0.4VA max @ 28V AC/DC, 50 milliohms max contact resistance
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 50,000 operations minimum
- Contact Material: Tin plated phosphor bronze, gold plated brass
- Operating Temperature: -30°C to +85°C (-22°F to +185°F)
- Humidity Resistance: 90-95% for 192 hours @ 40°C
- Vibration: 10-60Hz, peak-to-peak 1.5mm amplitude
- Shock: 50G acceleration, tested in 6 directions
- Soldering: Wave and manual soldering recommended; not process sealed
- Material: Glass fiber reinforced polyamide, carbon blended polyacetal
- Terminal Spacing: 0.100" (2.54mm) grid conforming to PCB standards
- Certifications: Not UL or CSA recognized for these switches
Buy the NKK Series AS Subminiature Sliding Switch: AS12AW
Enhance your electronic designs with the NKK Series AS12AW subminiature sliding switch. Its compact size and reliable switching make it perfect for space-conscious devices. Featuring multiple actuator options and sealed terminals for protection against contaminants, this switch supports low-voltage, low-current applications typical of modern electronics. Easy to install with standard PCB grid spacing, it ensures long-lasting performance and dependable operation in various environments. Purchase online now and add trusted quality to your next project.
Order your NKK Series AS12AW subminiature slide switch today and give your electronic projects the space-efficient reliability they need.
Frequently Asked Questions
Where can I buy NKK Switches AS12AW?
You can click on the BUY or RFQ button to purchase AS12AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part AS12AW?
You can download the AS12AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of AS12AW?
NKK Switches
