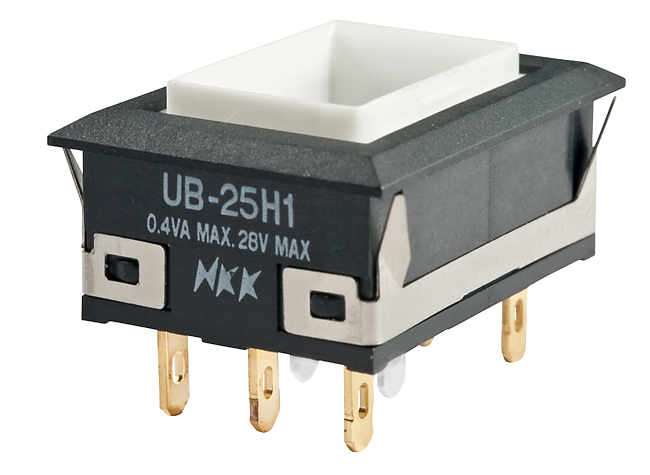

NKK Switches UB25NKG015C Illuminated Pushbutton Switch
A low-profile illuminated pushbutton switch designed for PCB mounting and soldering applications. It features a compact profile suitable for space-constrained designs and provides visual illumination when activated.
NKK Switches UB25NKG015C Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole SPDT
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts and case for 1 min
- Mechanical Life: 1,000,000 operations min
- Electrical Life: 200,000 operations min with resistive load
- Nominal Operating Force: 1.9N (single pole)
- Travel: Pretravel 0.067” (1.7mm), Overtravel 0.024” (0.6mm), Total Travel 0.091” (2.3mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- LED Color & Specs: Red, Amber, Green, White, Blue; Peak Forward Current 30mA, Forward Voltage 1.85-3.2V
- Operating Temperature Range: -25°C to +50°C for illuminated units
- Soldering: Wave and manual soldering profiles suitable for PC version
- Certifications: UL Recognized, CSA Certified, UL94V-0 housing
Buy the NKK UB25NKG015C – Reliable Illuminated Pushbutton for Industrial Applications
Purchase the NKK UB25NKG015C illuminated pushbutton switch online today and enjoy excellent durability, bright LED indicators, and easy PCB mounting in compact industrial designs. Ideal for control panels, equipment, and automation systems, this switch offers reliable contact operation with a long mechanical life. Its illuminated feature ensures visibility in low-light conditions, and easy soldering profiles ensure quick installation. Perfect for demanding environments, this switch guarantees consistent performance and safety compliance, making it a smart choice for engineers and technicians alike.
Buy NKK UB25NKG015C now and experience unmatched reliability and performance with space-efficient illuminated pushbutton switch designed for harsh environments.
Frequently Asked Questions
Where can I buy NKK Switches UB25NKG015C?
You can click on the BUY or RFQ button to purchase UB25NKG015C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB25NKG015C?
You can download the UB25NKG015C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB25NKG015C?
NKK Switches
