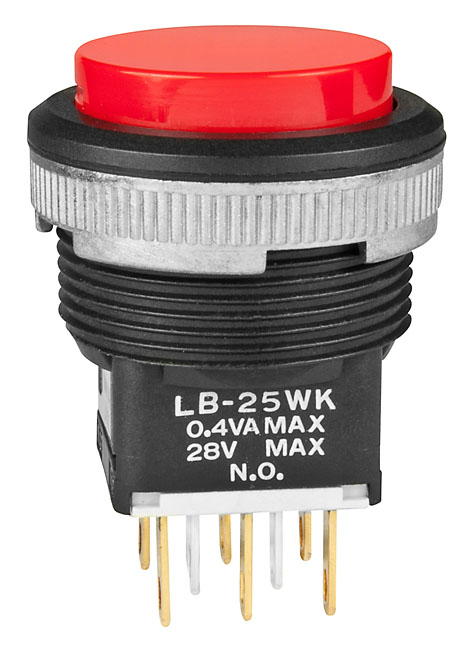

NKK Switches LB25WKG01CJ Waterproof Pushbutton Switch
This is a standard size illuminated pushbutton switch designed to be waterproof, providing reliable operation in challenging environments. It features waterproof construction to prevent moisture ingress and is suitable for various industrial and outdoor applications.
NKK Switches LB25WKG01CJ Waterproof Pushbutton Switch Specifications:
- Panel Seal: IP65 of IEC60529, similar to NEMA 4 & 13
- Housing Color: Black
- Electrical Capacity: 3A @ 125/250V AC or 3A @ 30V DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 5.39N
- Travel: Pretravel 0.059”, Overtravel 0.059”, Total Travel 0.118”
- Operating Temperature Range: -25°C to +50°C
- Vibration: 10 ~ 55Hz, peak-to-peak amplitude 1.5mm
- Shock: 50G acceleration in all directions
- Mounting: Stainless steel clips for panel thicknesses up to 4.0mm
- Terminals: Solder lug and .110” quick connect, epoxy sealed against contaminants
- Standards: UL recognized (file no. E44145), CSA certified (file no. 023535_0_000)
Buy the Buy NKK Switches LB25WKG01CJ Online
Order the NKK Waterproof Pushbutton Switch LB25WKG01CJ online today to ensure reliable, waterproof operation for your industrial or outdoor applications. This switch is designed with IP65 sealing to prevent moisture ingress, making it ideal for challenging environments. It features durable construction, including stainless steel clips for secure mounting on panels up to 4 mm thick. With a long electrical and mechanical life, easy installation, and compliance with UL and CSA standards, this switch guarantees superior performance and durability for demanding projects.
Get NKK Switches LB25WKG01CJ today—built for waterproof durability and long-lasting operation in tough environments.
Frequently Asked Questions
Where can I buy NKK Switches LB25WKG01CJ?
You can click on the BUY or RFQ button to purchase LB25WKG01CJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25WKG01CJ?
You can download the LB25WKG01CJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25WKG01CJ?
NKK Switches
