NKK Switches UB25RKW035D Illuminated Pushbutton Switch
A low-profile illuminated pushbutton switch designed for printed circuit board (PCB) mounting and soldering applications. Ideal for user interface and control panels requiring compact and reliable operation.
NKK Switches UB25RKW035D Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole, SPDT
- Mounting Type: PCB Mounting, Solder Lug
- LED Colors & Specifications: Red, Amber, Green, White, Blue; Bright or Super Bright LEDs; Forward Voltage V, range 1.85-3.2V; Peak Current 25-30mA
- Electrical Capacity: 5A @ 125/250V AC, 5A @ 30V DC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max for Silver, 100 milliohms max for Gold
- Insulation Resistance: 200 Megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts; 1,500V between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations
- Operating Temperature Range: -25°C to +50°C for Illuminated, -20°C to +70°C for Non-illuminated
- Contact Material: Silver alloy or copper with gold plating
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Dimensions: Square or rectangular body, typical length 15.24-20.32 mm, width 12.70-15.24 mm
- Soldering Temperature & Time: Profile A (manufacturer provided)
- Certifications: UL Recognized, CSA Certified, recognized at 5A @ 125/250V AC

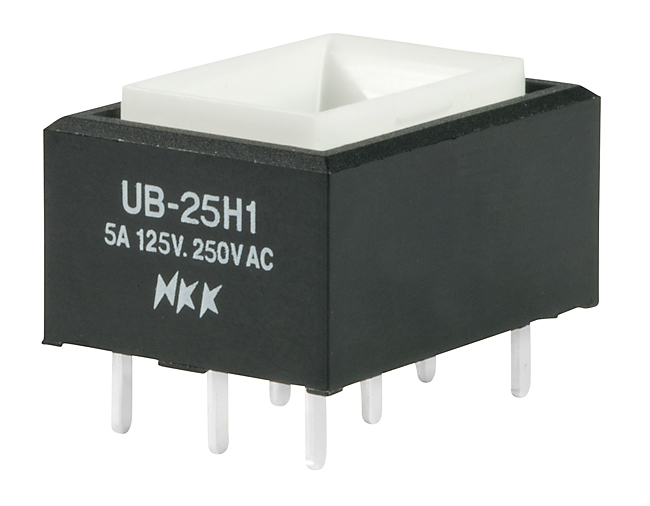

Buy the NKK Series UB Standard Pushbutton: UB25RKW035D
Purchase the NKK Series UB25RKW035D illuminated pushbutton switch online today. Designed for PCB mounting, it offers enhanced durability, bright LEDs, and reliable operation for control panels and user interfaces. Compact and easy to install, this switch is perfect for demanding electronic applications. Ensure your project benefits from superior build quality, precise actuation, and certified safety standards. Order now to optimize your control systems with this high-performance, low-profile switch and enjoy quick delivery and excellent customer support.
Order your NKK Series UB25RKW035D illuminated PCB pushbutton today and ensure reliable, compact control in your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches UB25RKW035D?
You can click on the BUY or RFQ button to purchase UB25RKW035D from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB25RKW035D?
You can download the UB25RKW035D datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB25RKW035D?
NKK Switches
