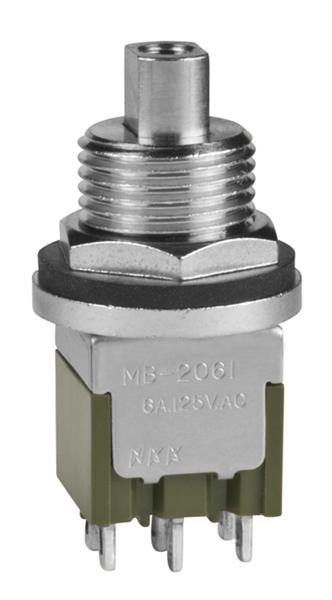

NKK Switches MB2061SB3W01 Miniature Pushbutton
This is a 12mm pushbutton switch with an ON(ON) configuration, featuring a splash-proof design. It includes a bushing for mounting and solder lugs for electrical connections, suitable for panel mounting applications.
NKK Switches MB2061SB3W01 Miniature Pushbutton Specifications:
- Bushing Diameter: 12.0mm
- Mounting Type: Threaded with Keyway
- Maximum Panel Thickness: 0.217 inches (5.5mm)
- Contact Rating: 6A @ 125V AC and 3A @ 250V AC
- Contact Material: Silver over Silver
- Terminal Type: Solder Lug
- Plunger Type: Plastic for B1 Bushing, Metal for B3 Bushing
- Plunger Diameter: 12.0mm
- Terminals: Solder Lug, 0.062 inches (1.57mm) wide
- Cap Diameter Options: 8.0mm, 10.0mm, 13.2mm, 19.0mm
- Cap Colors Available: Black, White, Red, Amber, Yellow, Green, Blue, Gray
- Plunger Travel: Momentary and Alternate Action Models
Buy the Buy NKK Large Bushing Miniature Pushbuttons Part Number MB2061SB3W01 Online
Shop online for the NKK Series MB2061SB3W01 miniature pushbutton switch with splashproof design, silver contacts, 12mm bushing, solder lug terminals, and multiple cap color options, perfect for industrial control panels. Designed for durability and ease of installation, this switch offers dependable operation in harsh environments. Ideal for machinery, automation, and electronic projects, ensuring long-lasting performance. Purchase now for fast delivery and competitive pricing—upgrade your control system today with this high-quality, versatile pushbutton switch.
Order your NKK Series MB2061SB3W01 splashproof pushbutton today and enhance your panel assembly with reliable, durable switching performance.
Frequently Asked Questions
Where can I buy NKK Switches MB2061SB3W01?
You can click on the BUY or RFQ button to purchase MB2061SB3W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2061SB3W01?
You can download the MB2061SB3W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2061SB3W01?
NKK Switches
