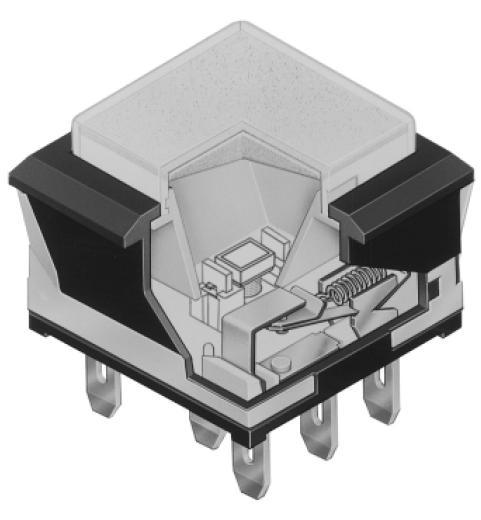

NKK Switches UB25SKW03NC Illuminated Pushbutton Switch
A low-profile, illuminated pushbutton switch suitable for PC boards and solder installation. Designed for easy operation with integrated lighting to indicate status. Features high-quality materials, instant response, and a compact size ideal for tight spaces in industrial and automation applications. It supports various LED colors, mounting options, and electrical ratings for durable performance in demanding environments. The switch combines reliable contact mechanisms with sturdy construction, making it suitable for control panels, machinery, and electronic devices where space and visibility are critical.
NKK Switches UB25SKW03NC Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: 1 SPDT
- Mounting Type: PCB Mounting
- LED Colors: Red, Amber, Green, White, Blue
- LED Ratings: Bright or Super Bright LEDs with forward voltage V, 1.85-3.2 V, peak current 20-30 mA
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver contacts, 100 milliohms max for gold contacts
- Insulation Resistance: 200 MΩ min at 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts & case for 1 min
- Mechanical Life: 1,000,000 operations (momentary), 200,000 (resistive load with resistive load 3A at 125V AC)
- Nominal Operating Force: 1.9N for single pole, 2.55N-3.1N for double pole
- Travel: Total travel 2.3mm, pre-travel 1.7mm, overtravel 0.6mm
- Operating Temperature Range: -20°C to +70°C (Nonilluminated), -25°C to +50°C (Illuminated)
- Environmental: Humidity 90-95% for 96 hours, vibration 3 Hz for 2 hours, shock 50G
- Materials: Housing/Bezel - UL94V-0 polyamide, Contacts - Phosphor bronze/silver or gold plating
- Certifications: UL Recognized, CSA Certified
Buy the NKK UB25SKW03NC – Reliable Illuminated Pushbutton for Industrial Applications
Order the NKK Illuminated Pushbutton Switch today to enhance your control system with reliable, easy-to-install components. Designed with integrated LED lighting, it offers visibility and responsiveness in compact spaces, making it ideal for machinery, control panels, and electronic devices in industrial automation. Its durable materials and high electrical ratings ensure long-lasting performance. With multiple LED color options and mounting styles, this switch provides flexible integration for demanding environments. Purchase online now for quick delivery and seamless setup of your control solutions.
Get NKK UB25SKW03NC today—built for precision, space-saving design, and long-lasting durability in industrial control panels.
Frequently Asked Questions
Where can I buy NKK Switches UB25SKW03NC?
You can click on the BUY or RFQ button to purchase UB25SKW03NC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB25SKW03NC?
You can download the UB25SKW03NC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB25SKW03NC?
NKK Switches
