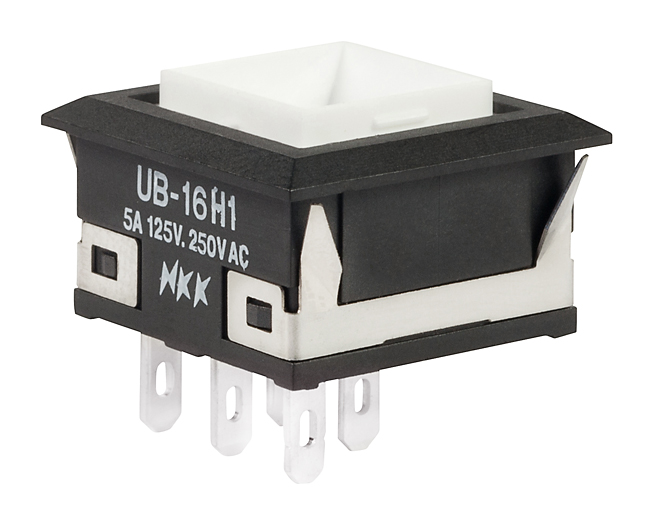

NKK Switches UB16KKW015C Illuminated Pushbutton
A low-profile, illuminated pushbutton switch designed for panel mounting with PC terminals and solder connections. Ideal for control panels requiring a compact and illuminated interface.
NKK Switches UB16KKW015C Illuminated Pushbutton Specifications:
- Poles & Circuits: Single & Double Pole configurations
- Mounting Type: PCB Mounting, Snap-in Mounting
- Cap Colors & Types: Red, Amber, Green, White, Blue; Full Face, Spot Illumination, Square, Rectangular
- LED Types: Bright or Super Bright LEDs, Polarity marked, Polarity-sensitive
- Electrical Rating: 5A at 125/250V AC, 0.4VA max at 28V AC/DC, resistive load
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megaohms minimum at 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case for 1 minute
- Mechanical Life: 1,000,000 operations for momentary, 200,000 for resistive load, 100,000 for resistive load with silver contacts
- Electrical Life: 200,000 operations minimum for gold contacts
- Operating Temperature Range: -25°C to +50°C for illuminated, -20°C to +70°C for non-illuminated
- Travel: Pretravel 0.067” (1.7mm), Overtravel 0.024” (0.6mm), Total Travel 0.091” (2.3mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Environmental Resistance: 90-95% humidity for 96 hours at 40°C, Shock resistance 50G, Vibration resistance 3Hz to 55Hz
Buy the NKK UB16KKW015C – Reliable Illuminated Pushbutton for Industrial Applications
Order the NKK UB16KKW015C illuminated pushbutton switch online today for a reliable, compact, and durable control solution. With high-quality illumination options, robust mechanical and electrical lifespan, and easy PCB mounting, this switch is perfect for industrial control panels and equipment needing clear visual feedback. Its high resistance to environmental factors and certified safety standards ensure top performance. Enhance your control systems now by purchasing online, benefitting from quick delivery, trusted quality, and expert support for your industrial applications.
Get NKK UB16KKW015C today—built for precision, long-lasting durability, and optimal control panel operation.
Frequently Asked Questions
Where can I buy NKK Switches UB16KKW015C?
You can click on the BUY or RFQ button to purchase UB16KKW015C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16KKW015C?
You can download the UB16KKW015C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16KKW015C?
NKK Switches
