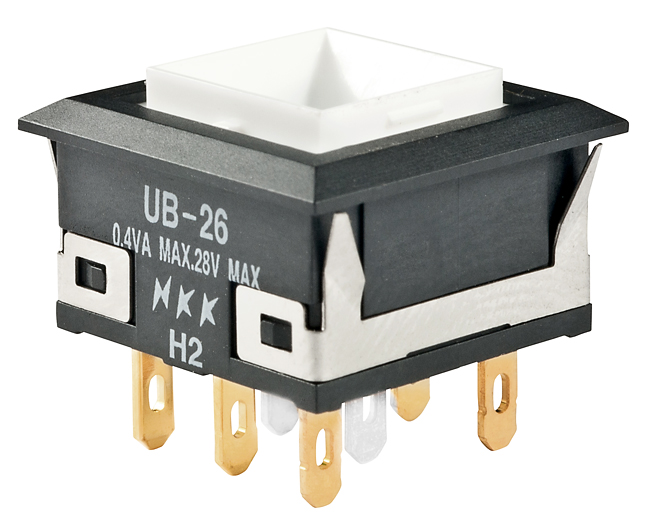

NKK Switches UB26KKG016F Low Profile Pushbutton
This low-profile illuminated pushbutton switch offers reliable performance for compact electronic applications. Featuring a PCB mount design with solder lug terminals, it provides bright LED illumination options in multiple colors, including red, green, white, and blue. The switch supports momentary and alternate action circuits, with a quick-make, quick-break contact mechanism that prolongs electrical life and limits arcing. Its stainless steel spring-loaded guard protects the switch from contaminants, ensuring durability in harsh environments. Suitable for panel thicknesses from 0.039 to 0.126 inches, it is certified for UL, CSA standards, and has an operating temperature range of -25°C to +50°C.
NKK Switches UB26KKG016F Low Profile Pushbutton Specifications:
- Poles & Circuits: Single Pole SPST
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: 200 MΩ min @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts; 1,500V AC for contacts and case
- Mechanical Life: 1,000,000 operations for momentary, 200,000 for resistive load
- Contact Timing: Break before make
- Travel: Total 0.091” (2.3mm), Pretravel 0.067” (1.7mm), Overtravel 0.024” (0.6mm)
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Operating Temperature Range: -25°C to +50°C
- Certifications: UL, CSA recognized
- LED Voltage & Current: 1.85V–3.2V, 20–30mA depending on color
- Panel Thickness: 0.039” ~ 0.126” (1.0mm ~ 3.2mm)
- Soldering: Wave and manual soldering profiles available
- Lamp and Terminal Materials: Copper with gold or silver plating
