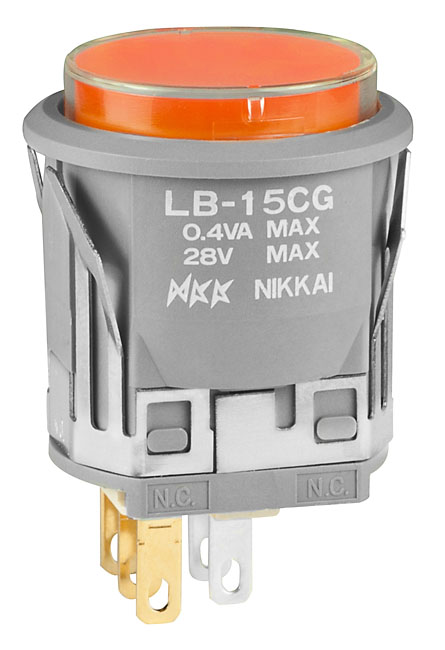

NKK Switches LB15CGG015D05JD Illuminated Pushbutton Switch
The standard size illuminated pushbutton switch features snap-in mounting for quick panel installation and reliable operation. It offers bright surface illumination with options for LED or incandescent lamps, and includes a variety of cap colors and shapes. Suitable for various control applications, this switch provides tactile feedback, durable construction with polycarbonate and stainless steel components, and environmental sealing up to IP65 standards. Capable of handling resistive loads up to 3A at 125/250V AC, it is ideal for industrial and automation systems requiring clear visual indication and robust performance.
NKK Switches LB15CGG015D05JD Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 megaohms min @ 500V DC
- Dielectric Strength: 1,000V AC contact to contact, 1,500V AC contact to case
- Mechanical Life: 1,000,000 operations for momentary, 200,000 for maintained circuit
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total Travel 3.0mm
- Materials: Housing: Glass fiber reinforced polyamide, Snap-in frame: Polycarbonate, Contacts: Silver alloy or gold plated
- Environmental Protection: IP65 rated for panel sealed models
- Standards: Recognized under UL, cUL, and CSA certifications when ordered with markings
- Mounting: Screw or snap-in with stainless steel clips for secure attachment
- Cap & LED options: Various colors and shapes, including translucent and solid caps, with snap-in LED modules for surface illumination
Buy the Buy NKK Switches Series LB Part Number LB15CGG015D05JD Online
Enhance your control systems with the reliable NKK Series LB illuminated pushbutton switch. Featuring bright surface illumination, easy snap-in mounting, and IP65 sealing, this switch ensures durability in industrial environments. It offers multiple LED and cap color options for visual indication, with resistive loads up to 3A at 125/250V AC. Its rugged construction and environmental sealing make it ideal for automation, machinery, and control panels, providing long-lasting performance and clear status indication. Purchase online now for fast delivery and trusted quality.
Order your NKK Series LB LB15CGG015D05JD illuminated pushbutton today and enhance your control panel with reliable, bright, and durable switches.
Frequently Asked Questions
Where can I buy NKK Switches LB15CGG015D05JD?
You can click on the BUY or RFQ button to purchase LB15CGG015D05JD from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15CGG015D05JD?
You can download the LB15CGG015D05JD datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15CGG015D05JD?
NKK Switches
