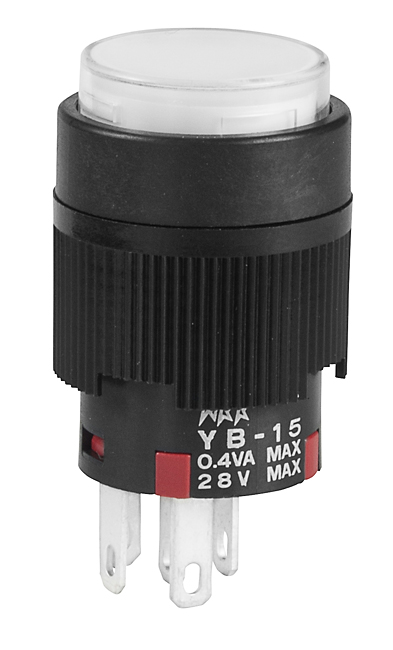

NKK Switches YB15CKG016BJB Short Body Pushbutton
This is a short-bodied, illuminated pushbutton designed for panel mounting. It features a compact size suitable for various control applications, providing clear visual indication when activated.
NKK Switches YB15CKG016BJB Short Body Pushbutton Specifications:
- Housing Material: Polyamide (UL94V-0)
- Button Color Options: White, Red, Yellow, Green, Blue, with or without illumination
- Illumination Type: Incandescent lamps or multi-element LEDs
- LED Colors: White, Green, Blue, Red, Amber, Green (bright or super bright LEDs)
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC, with resistors available
- Contact Resistance: 50 milliohms max for silver contacts, 100 milliohms for gold contacts
- Mechanical Life: 1,000,000 operations min.
- Electrical Life: 200,000 operations min.
- Nominal Operating Force: 1.47N nonsealed, 1.67N sealed (single pole), 2.75N nonsealed, 2.94N sealed (double pole)
- Travel: Pretravel 0.059”, Overtravel 0.059”, Total Travel 0.118”
- Ingress Protection: IP65 for panel seal models
- Mounting Torque: 0.785Nm
- Certification: UL Recognized, CSA Certified, IEC60529 IP65
Buy the NKK Series YB Short Body Control Button: YB15CKG016BJB
Order the NKK Short Body Pushbutton YB15CKG016BJB online today to ensure fast delivery of a high-quality, durable, and reliable control switch. Its compact design fits seamlessly into control panels, providing excellent tactile feedback and clear LED illumination for easy operation. Ideal for automation, machinery, and panel applications, this switch has a long operational life, IP65 sealing for dust and splash protection, and certification for safety standards. Trust NKK for superior product performance and effortless integration. Purchase now for hassle-free deployment and enhanced control system reliability.
Buy NKK YB15CKG016BJB now and experience unmatched reliability and performance with compact control solutions designed for durability.
Frequently Asked Questions
Where can I buy NKK Switches YB15CKG016BJB?
You can click on the BUY or RFQ button to purchase YB15CKG016BJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB15CKG016BJB?
You can download the YB15CKG016BJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB15CKG016BJB?
NKK Switches
