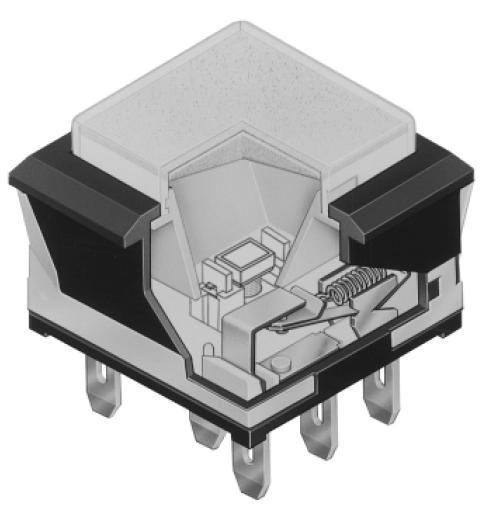

NKK Switches UB25KKW01NA Low Profile Illuminated Switch
This is a low-profile illuminated pushbutton switch designed for PC board mounting and soldering applications. It features a compact design suitable for space-constrained electronic devices and provides visual indication when activated.
NKK Switches UB25KKW01NA Low Profile Illuminated Switch Specifications:
- Poles & Circuits: Single Pole, SPDT
- Mounting Type: PCB Mounting, Solder Lug
- Illumination: Bright LED (Red, Amber, Green, White, Blue)
- LED Voltage: 28V AC/DC max
- Electrical Capacity: 5A @ 125/250V AC, 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Nominal Operating Force: 1.9N for Square & Rectangular models
- Travel: Pretravel 0.067” (1.7mm); Overtravel 0.024” (0.6mm); Total Travel 0.091” (2.3mm)
- Housing Material: UL94V-0 glass fiber reinforced polyamide
- Operating Temperature Range: -25°C to +50°C
- Compliance: UL Recognized, CSA Certified
Buy the Buy NKK Series UB Part Number UB25KKW01NA Online
Purchase your NKK Series UB25KKW01NA online today and experience the reliability of a space-saving, illuminated pushbutton switch designed for PC board mounting. Perfect for compact electronic devices, this switch features bright LED illumination, high durability, and a sleek low-profile design. Its easy soldering terminals ensure quick installation, making it ideal for control panels, industrial equipment, and automation systems requiring visual status indication and space-efficient solutions. Trust NKK for quality and performance in your electronic projects.
Order your NKK Series UB25KKW01NA today and give your projects the dependable quality they deserve with space-efficient illumination.
