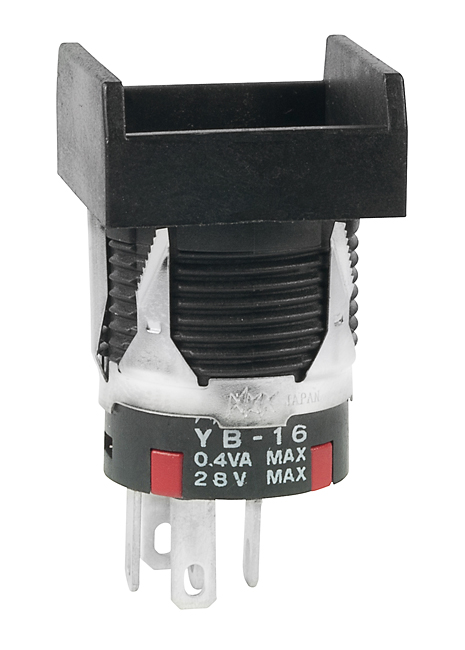

NKK Switches YB16KKG01 Short Body Pushbutton
This short, illuminated pushbutton switch features a robust construction suitable for control panel applications. It offers reliable operation, featuring a built-in LED for visual indication, easy mounting options including bushing or snap-in, and durable materials resistant to dust and splash, compliant with IP65 standards. Designed for industrial and electronic equipment, it ensures long life with high mechanical and electrical durability, making it ideal for panel control systems requiring clear visual feedback and dependable operation.
NKK Switches YB16KKG01 Short Body Pushbutton Specifications:
- Power Level (silver): 3A @ 125/250V AC
- Logic Level (gold): 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC minimum between contacts for 1 min, 1500V AC between contacts & case for 1 min
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Housing Material: UL94V-0 polyamide, seal material: thermoplastic elastomer
- Switch Terminals: Solder lug/quick connect, 0.110" (2.8mm)
- Mounting: Bushing or snap-in mount with panel thickness range 0.020" to 0.118"
- Ingress Protection: IP65 for panel seal models, dust and splashproof
Buy the NKK Switches YB16KKG01 – Reliable Illuminated Pushbutton for Industrial Applications
Enhance your industrial control systems with the reliable, durable, and easy-to-install illuminated pushbutton switch from NKK. Featuring robust construction, high operating life, and IP65 sealing, this switch ensures dependable performance in demanding environments. Suitable for a wide range of panel applications, it offers quick mounting options including bushing or snap-in, with sealed terminals for dust and splash resistance. Perfect for control panels requiring visual feedback, this switch delivers long-lasting durability, safety, and ease of use for industrial and electronic projects.
Order your NKK Series YB16KKG01 illuminated pushbutton today and upgrade your control panels with dependable, easy-to-install switch solutions.
Frequently Asked Questions
Where can I buy NKK Switches YB16KKG01?
You can click on the BUY or RFQ button to purchase YB16KKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB16KKG01?
You can download the YB16KKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB16KKG01?
NKK Switches
