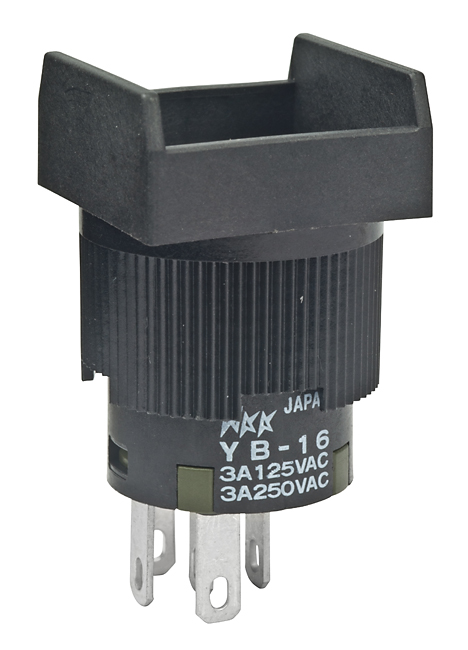

NKK Switches YB16SKW01 Illuminated Pushbutton
A panel-mounted illuminated pushbutton switch designed for quick and easy operation in various control panels. It features a compact body suitable for installation in tight spaces and provides visual illumination for status indication. This switch is ideal for industrial controls, machinery, and automation systems requiring reliable, illuminated actuation with durable construction and dependable electrical ratings.
NKK Switches YB16SKW01 Illuminated Pushbutton Specifications:
- Power Level: 3A @ 125/250V AC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum for maintained circuit
- Nominal Operating Force: 1.47N for nonsealed; 1.67N for sealed (single pole)
- Travel: Pretravel .059” (1.5mm); Overtravel .059” (1.5mm); Total Travel .118” (3.0mm)
- Housing/Bezel: Glass fiber reinforced polyamide (UL94V-0)
- Switch Terminals: Solder Lug/.110” (2.8mm), Quick Connect
- Operating Temperature Range: -25°C through +70°C for nonilluminated (illuminated -25°C through +50°C)
- Environmental: IP65 for panel seal models, 90 ~ 95% humidity for 96 hours @ 40°C
- Installation Torque: 0.785Nm (6.95 in-lb)
- Standards & Certifications: UL Recognized, CSA Certified, IEC60529 IP65
Buy the NKK YB16SKW01 – Reliable Illuminated Pushbutton for Industrial Applications
Enhance your industrial control systems with the NKK YB16SKW01 illuminated pushbutton switch. Designed for durability and easy operation, it offers reliable electrical ratings and a compact body ideal for tight panel spaces. With visual illumination options, this switch helps operators quickly identify system status, making it perfect for automation, machinery, and equipment control. Buy online now to ensure your projects benefit from high-quality, dependable control components that meet industry standards and enhance operational safety.
Order your NKK Series YB16SKW01 illuminated pushbutton switch today and upgrade your control panels with dependable, easy-to-activate illumination for industrial projects.
Frequently Asked Questions
Where can I buy NKK Switches YB16SKW01?
You can click on the BUY or RFQ button to purchase YB16SKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB16SKW01?
You can download the YB16SKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB16SKW01?
NKK Switches
