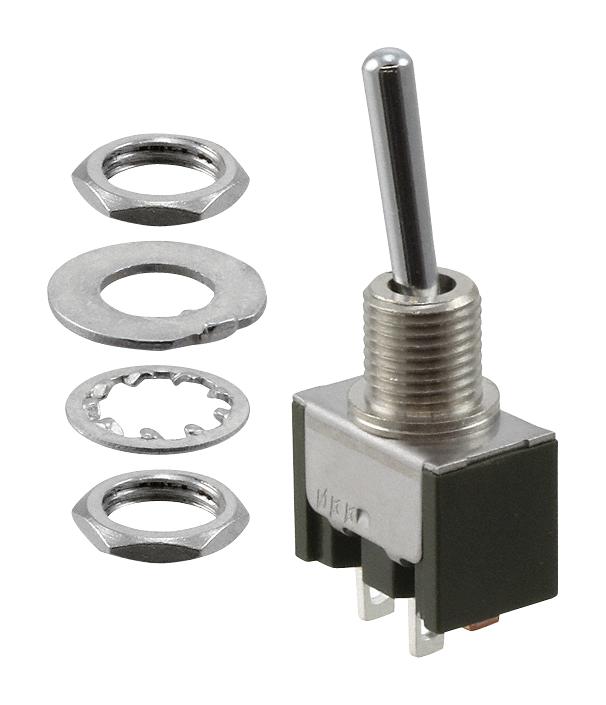

NKK Switches M2011SA1W01 Miniature Toggle Switch
This miniature toggle switch features a .413-inch diameter bat handle and a .280-inch threaded bushing, suitable for panel mounting in various electrical applications. Designed for durability, it handles a resistive load of 6A at 125V AC and includes solder lug connections for secure wiring. The switch incorporates antirotation and anti-jamming features, ensuring reliable operation and contact protection. Its robust construction with brass and chrome plating guarantees long-lasting performance, making it ideal for control panels, industrial equipment, and automation systems requiring compact, dependable switching solutions.
NKK Switches M2011SA1W01 Miniature Toggle Switch Specifications:
- Poles & Circuits: 1 SPST
- Contact Material & Ratings: Silver over Silver, 6A at 125V AC
- Terminal Type: Solder Lug
- Bushing Diameter: .280-inch (7.1mm)
- Bushing Thread: 1/4-40 Thd
- Cap Material & Finish: Polycarbonate, optional colors available
- Switch Body Material: Brass with Bright Chrome finish
- Operating Temperature Range: -30°C through +85°C
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Environmental Resistance: Sealed terminals, splashproof options available
- Mounting Hardware: Hex Nut, Locking Ring, Lockwasher included
- Panel Thickness Compatibility: Up to .047 inches (1.2mm)
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 Megohms minimum at 500V DC
- Dielectric Strength: 1,500V AC for 1 minute
- Certifications: UL Recognized, CSA Certified
- Operating Temp Range: -30°C to +85°C
- Shock & Vibration Resistance: 50G acceleration, 10-55Hz vibration range
Buy the NKK Series M Miniature Toggle: M2011SA1W01
Order the NKK Miniature Toggle Switch M2011SA1W01 online today and enjoy high-quality performance with a robust design suitable for automation, control panels, and industrial devices. Featuring a .413-inch bat handle and a .280-inch threaded bushing, this switch offers reliable, long-lasting operation rated for 6A at 125V AC. Easy to install with solder lug connections, it includes protective features like sealed terminals and key functionalities to ensure durability, making it an excellent choice for professional electrical and electronic projects requiring compact, dependable switches.
Get NKK M2011SA1W01 today—built for precision and long-lasting durability in control and automation applications.
Frequently Asked Questions
Where can I buy NKK Switches M2011SA1W01?
You can click on the BUY or RFQ button to purchase M2011SA1W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2011SA1W01?
You can download the M2011SA1W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2011SA1W01?
NKK Switches
