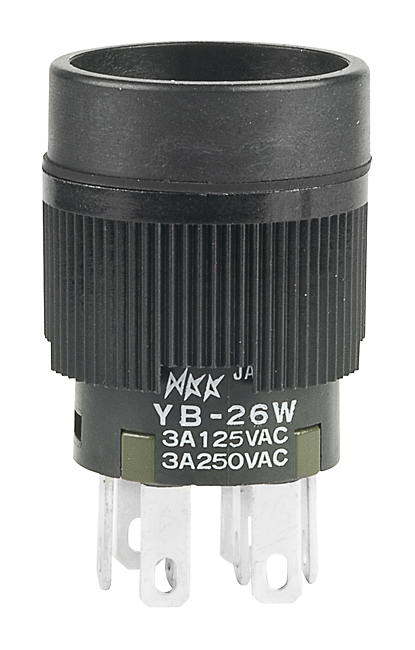

NKK Switches YB26WCKW01 Sealed Control Pushbutton
This is a short, illuminated pushbutton switch designed for panel mounting. It features a sealed construction to prevent dust and moisture ingress, making it suitable for control panels and industrial applications.
NKK Switches YB26WCKW01 Sealed Control Pushbutton Specifications:
- Power Level (silver): 3A @ 125/250V AC
- Logic Level (gold): 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms max. for silver; 100 milliohms max. for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 1.47N for nonsealed, 1.67N for sealed
- Pretravel: 0.059” (1.5mm); Overtravel: 0.059” (1.5mm); Total Travel: 0.118” (3.0mm)
- Housing/Bezel: UL94V-0 glass fiber reinforced polyamide
- Switch Terminals: Solder Lug / 0.110” (2.8mm)
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for nonilluminated
- Environmental Resistance: IP65 panel seal standard, 90-95% humidity for 96 hours @ 40°C
- Mounting Torque: 0.785Nm (6.95 in-lb)
- Soldering: Manual soldering with Profile A recommended
- Standards & Certifications: UL, CSA recognized when ordered with markings
Buy the Buy NKK Switches Short Body Pushbuttons Part Number YB26WCKW01 Online
Purchase the NKK Switches YB26WCKW01 sealed control pushbutton switch online today. Designed for durability and environmental resistance, it offers a compact, sealed construction suitable for control panels and industrial machinery. Its sealed design ensures dustproof and splashproof operation, meeting IP65 standards, making it ideal for demanding environments. Featuring a robust mechanical life of over a million operations and high electrical endurance, this switch guarantees consistent performance and long service life. Order now to enhance your control systems with guaranteed reliability and quality.
Buy NKK Switches YB26WCKW01 now and experience unmatched reliability and performance with sealed, industrial-grade pushbutton switches.
Frequently Asked Questions
Where can I buy NKK Switches YB26WCKW01?
You can click on the BUY or RFQ button to purchase YB26WCKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB26WCKW01?
You can download the YB26WCKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB26WCKW01?
NKK Switches
