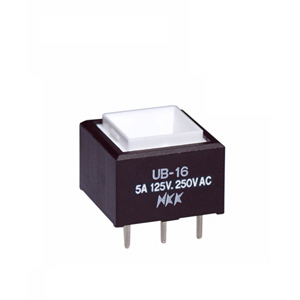

NKK Switches UB16SKW03N Low Profile Pushbutton Switch
A low-profile, illuminated pushbutton switch suitable for printed circuit board mounting and solder connection. Designed for easy operation and reliable illumination. It features a compact design, quick-make, quick-break switching action, and bright LED illumination in various colors. The switch supports safety standards such as UL and CSA, with high electrical ratings of 5A at 125/250V AC and 0.4VA maximum at 28V AC/DC. Constructed with durable materials including polycarbonate and stainless steel, it accommodates panel thicknesses from 0.039” to 0.126”. Versatile and ideal for space-constrained applications requiring robust and visible control features.
NKK Switches UB16SKW03N Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: 1 SPDT PCB Mounting
- LED Colors & Ratings: Red, Amber, Green, White, Blue; Bright or Super Bright LEDs; 20-30mA forward current; 1.85-3.2V forward voltage
- Electrical Capacity: 5A at 125/250V AC; 0.4VA max at 28V AC/DC
- Mechanical Life: 1,000,000 operations (momentary), 200,000+ operations (resistive load)
- Contact Resistance: Max 50 milliohms (silver), Max 100 milliohms (gold)
- Insulation Resistance: Min 200 megaohms @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts; 1,500V AC between contacts and case for 1 minute
- Operating Temperature Range: -20°C to +50°C, Illumination -25°C to +50°C
- Panel Thickness: 0.039” to 0.126” (1.0mm to 3.2mm)
- Housing Material: UL94V-0 flame-rated polycarbonate
- Contact Material: Silver alloy or copper with gold plating
- Soldering Method: Wave or manual soldering profiles as per specifications
- Certifications: UL Recognized (File No. E44145), CSA Certified (File No. 023535_000)
Buy the Buy NKK Switches Low Profile Pushbutton Part Number UB16SKW03N Online
Enhance your control panel with this space-efficient, illuminated pushbutton switch. Featuring bright LED indicators, durable construction, and high electrical ratings, it ensures reliable operation in tight spaces. Easy to mount on printed circuit boards with quick-make, quick-break contacts, this switch supports extensive mechanical and electrical life cycles. Perfect for applications requiring clear visual indication and space-saving design, purchase online today for quick delivery and trusted performance.
Buy NKK Switches UB16SKW03N low-profile illuminated pushbutton switch now and experience unmatched reliability and space-saving performance.
