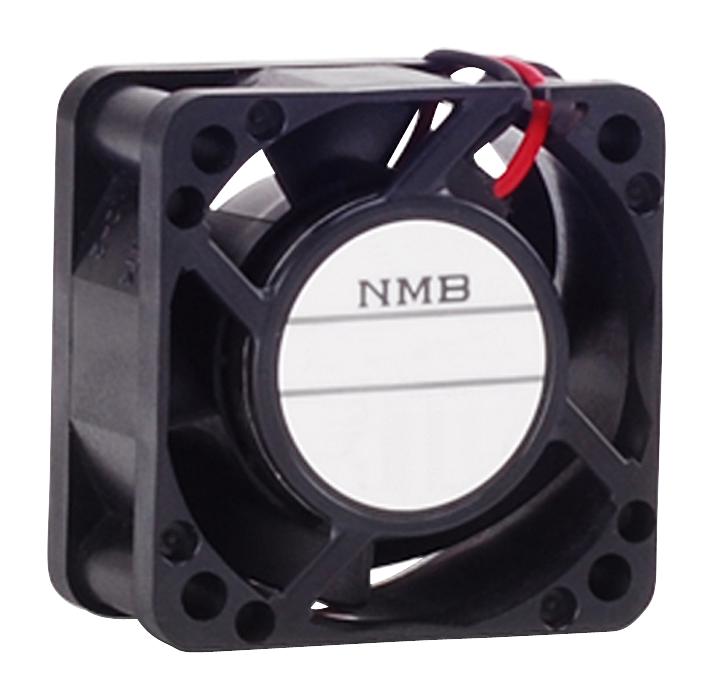

NMB TECHNOLOGIES 04020VE24QCT00 DC Brushless Fan
The NMB 04020VE-24Q-CT-00 is a high-performance brushless DC fan engineered for exceptional durability and reliability in harsh conditions. Its IP69K rating provides dust-tight protection and resistance to high-temperature water jets, making it suitable for outdoor applications, factory automation, food processing, and refrigeration. The fan incorporates NMB's precision-machined ball bearings with stainless steel components, ensuring a long operational life. It also offers an open-collector tacho signal output for precise fan speed control. This fan is a robust solution for demanding industrial environments.
NMB TECHNOLOGIES 04020VE24QCT00 DC Brushless Fan Specifications:
- Motor Type: DC Brushless Motor
- Motor Protection: Auto Restart/Polarity Protection
- Insulation Resistance: 10M Ω or over with a DC500V Megger
- Dielectric Withstand Voltage: AC 700V 1s or 500V 1min
- Allowable Ambient Temperature Range (Operating): -10°C ~ +70°C
- Allowable Ambient Temperature Range (Storage): -40°C ~ +70°C
- IP Rating: IP69K
- Life Expectancy L10 (60°C): 40,000 Hours
- Rated Voltage: 24V
- Operating Voltage: 14.0~26.4V
- Current (Avg): 0.11A
- Current (Max): 0.15A
- Input Power (Avg): 2.64W
- Input Power (Max): 3.60W
- Speed: 11,000 min-1
- Max. Air Flow: 12.36 CFM
- Max. Air Flow (m3/min): 0.35
- Max. Static Pressure (inH2O): 0.57
- Max. Static Pressure (Pa): 142
- Noise: 40 dB
- Mass: 42.0 g
- Casing Material: Plastic (Black UL94V-0)
- Impeller Material: Plastic (Black UL94V-0)
- Bearing Type: Ball Bearing
- Lead Wire: UL3385 AWG26 or UL1430 AWG 26
- Lead Wire Colors: +: Red, -: Black, Tach: White
- Absolute Maximum Ratings Ta=25℃ VCE max: +28V
- Absolute Maximum Ratings Ta=25℃ Ic max: 5mA
- Absolute Maximum Ratings Ta=25℃ VCE(sat)max: 0.5V
