NMB-TECHNOLOGIES 3110KL04WB30D00 Datasheet & Stock

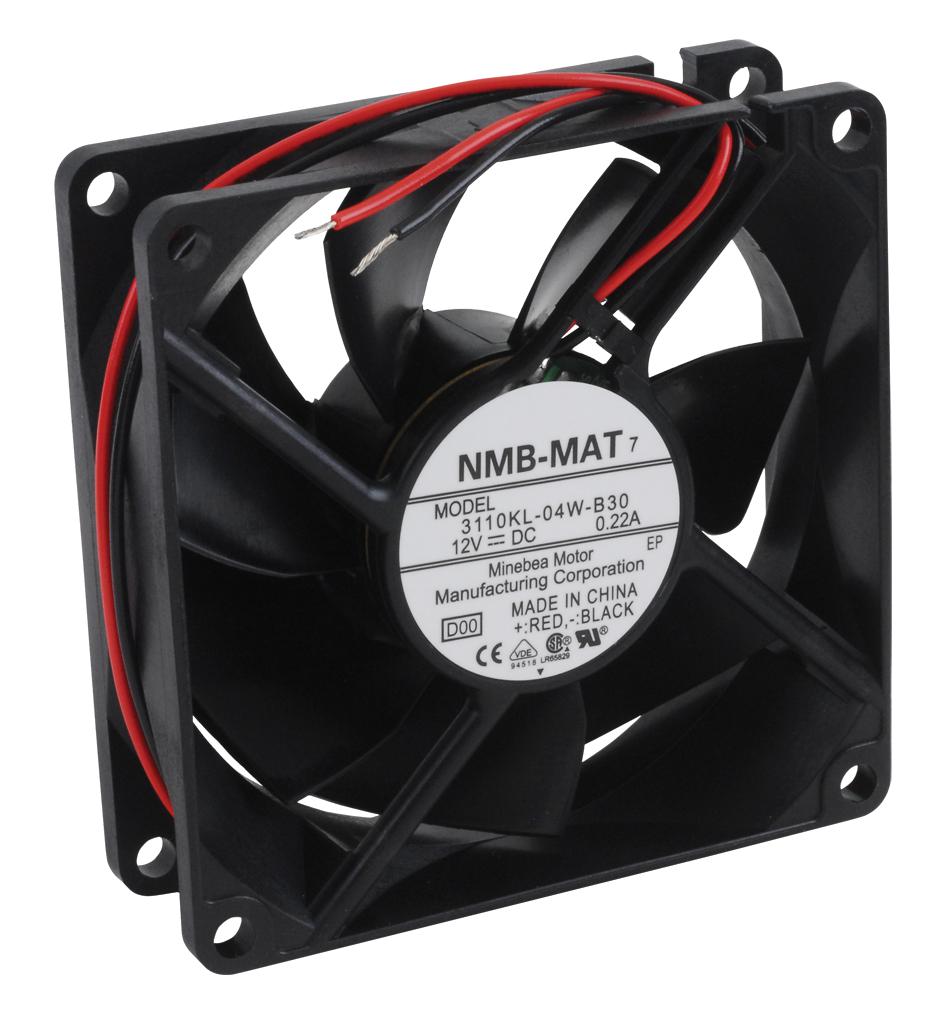

This is a 12VDC axial fan with a ball bearing and wire lead connection, featuring a plastic black casing and impeller. It operates clockwise, providing airflow over the struts, and is equipped with a brushless DC motor that supports standard control functions and flanged mounting. The fan is suitable for cooling applications involving heat dissipation. It has a UL94V-0 flammability rating, a rated speed of 2700 RPM, and operates within a temperature range of -10°C to 70°C. The rated power is 2.04W, with a static pressure of 0.1 inches of water. Insulation resistance exceeds 10 megaohms at 500V DC, and it includes features such as auto restart and polarity protection.
Frequently Asked Questions
Where can I buy NMB-TECHNOLOGIES 3110KL04WB30D00?
You can click on the BUY or RFQ button to purchase 3110KL04WB30D00 from an authorized NMB-TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 3110KL04WB30D00?
You can download the 3110KL04WB30D00 datasheet or visit the NMB-TECHNOLOGIES website for support.
Who is the manufacturer of 3110KL04WB30D00?
NMB-TECHNOLOGIES
