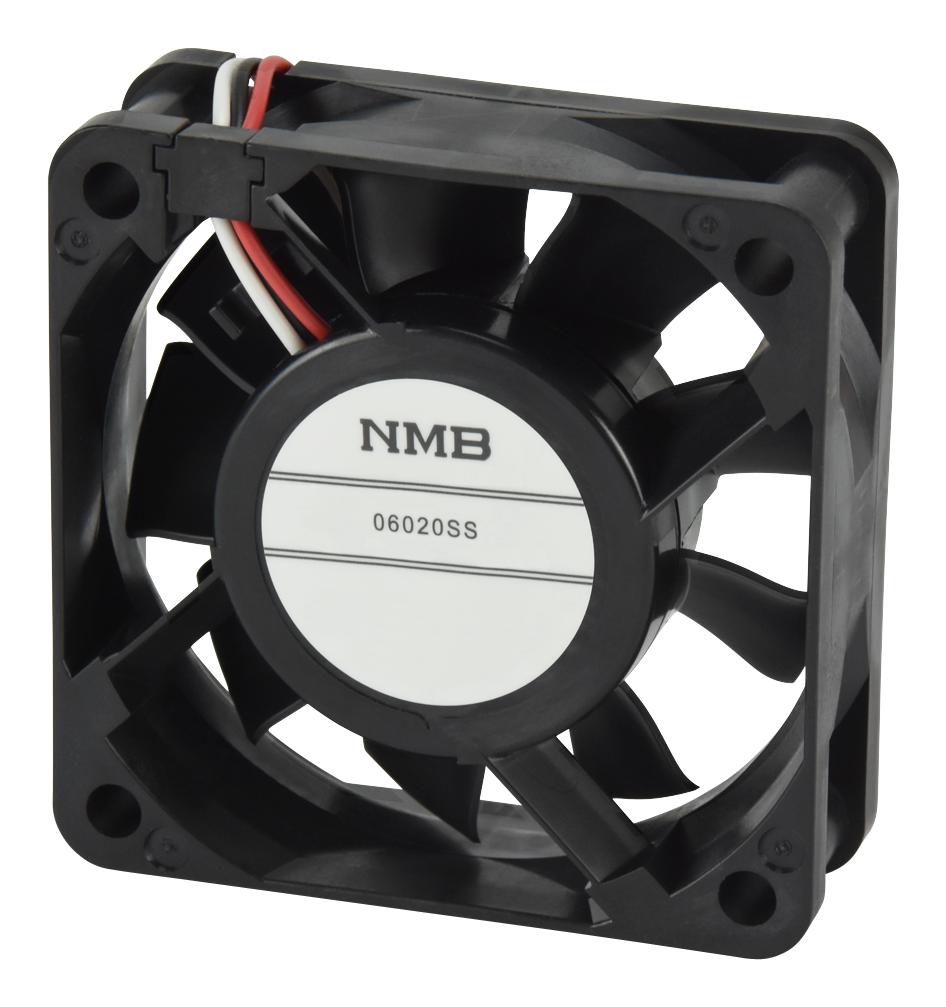

NMB TECHNOLOGIES 06020SS12NAT00 Sleeve Bearing Fan Motor
The NMB TECHNOLOGIES 06020SS-12N-AT-00 is a high-performance sleeve bearing fan motor engineered for demanding industrial environments. This fan motor offers a balance of efficiency, reliability, and compact size. It incorporates auto restart and polarity protection features for enhanced safety and operational longevity. Typical applications include cooling electronics, ventilation systems, and various other equipment where consistent airflow is critical. The motor's robust construction and sleeve bearing design contribute to its durability and quiet operation.
NMB TECHNOLOGIES 06020SS12NAT00 Sleeve Bearing Fan Motor Specifications:
- Motor Protection: Auto Restart/Polarity Protection
- Insulation Resistance: 10M Ω or over with a DC500V Megger
- Dielectric Withstand Voltage: AC 700V 1s
- Allowable Ambient Temperature Range (Operating): -10°C ~ +70°C
- Allowable Ambient Temperature Range (Storage): -40°C ~ +70°C
- Expected Life: 40°C 50,000 Hours (L10)
- Air Flow: 20.48 CFM
- Static Pressure: 0.58 in H2O
- Noise: 52.1 dB
- Mass: 28.5 g
- Rated Voltage: 12V
- Operating Voltage: 6.0 ~ 13.8V
- Input Voltage: 12V
- Input Power: 1.08 W
- Speed: 4400 RPM
- Bearing Type: Sleeve Bearing
- Casing Material: Plastic (Black) UL94V-0
- Impeller Material: Plastic (Black) UL94V-0
- Lead Wire: UL1007, AWG26, +Red, -Black
