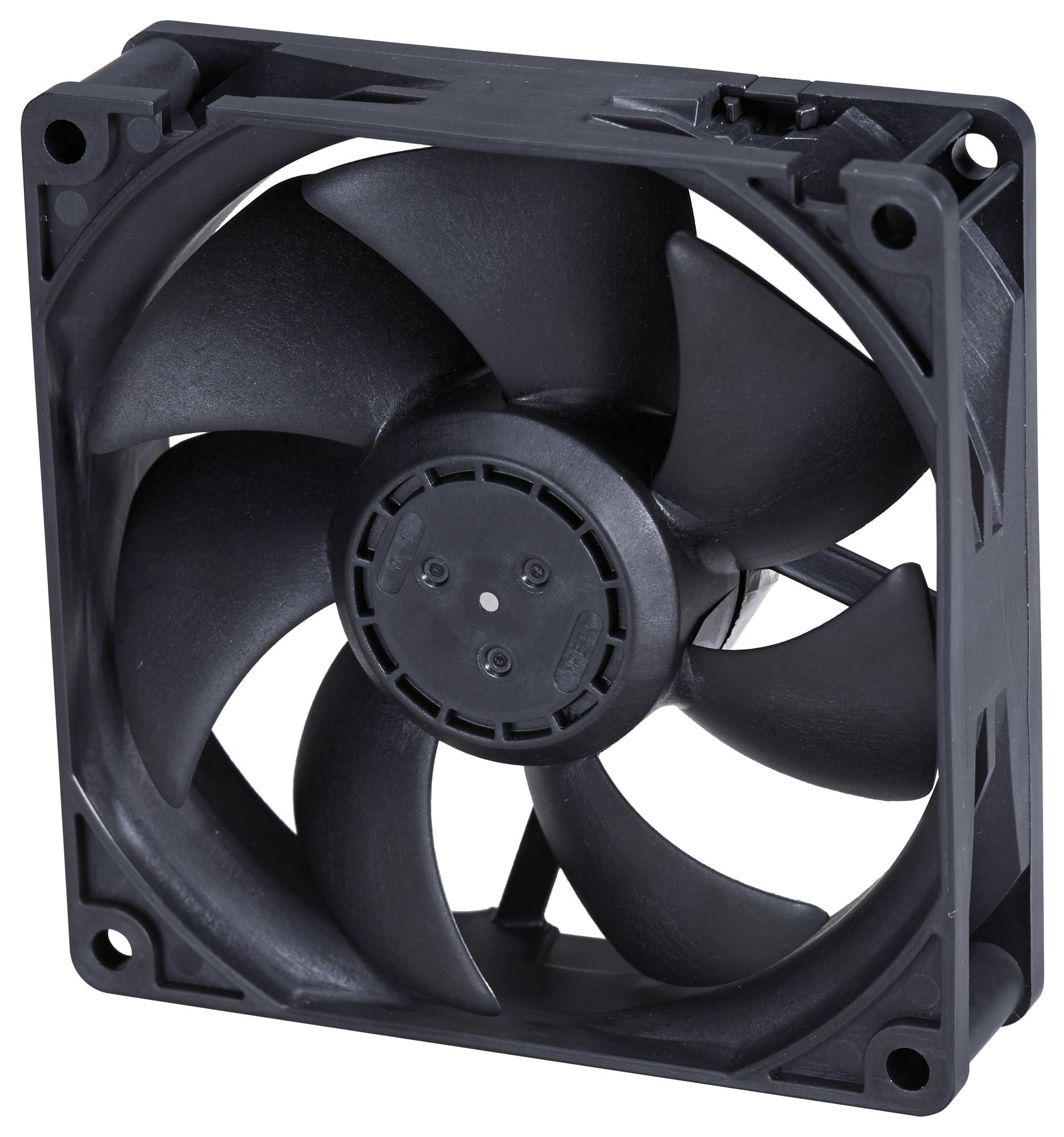

NMB TECHNOLOGIES 09225SA12NEAD0 industrial cooling fan
The DC axial fan with ball bearings offers reliable performance in industrial cooling applications. This fan features a black plastic casing and impeller, UL94V-0 rated for flame retardancy. Designed for durability, it includes auto restart and polarity protection, with an insulation resistance of over 10MQ. Suitable for non-condensing environments, it operates efficiently within a temperature range of -10°C to +70°C, with a lifespan of approximately 40,000 hours at 60°C. Its high airflow capacity and low noise levels make it ideal for panel cooling and electronics cooling solutions.
NMB TECHNOLOGIES 09225SA12NEAD0 industrial cooling fan Specifications:
- Casing Material: Plastic (Black) UL94V-0
- Impeller Material: Plastic (Black) UL94V-0
- Bearing Type: Ball Bearing
- Rated Voltage: 240 V
- Current: 0.10 A
- Input Power: 1.20 W
- Speed: 2400 RPM
- Air Flow: 39.9 CFM
- Static Pressure: 29.0 Pa
- Noise: 25.0 dB
- Temperature Range: -10°C to +70°C (Operating)
- Expected Life: 40,000 hours at 60°C
- Insulation Resistance: Over 10MQ with DCS00V Megger
- Mounting Type: Panel Out-cuts
- Rotation: Clockwise (viewed from label side)
- Standards: UL94V-0 flame retardant
- Dimensions: Not specified
- Environmental: Non-condensing environment
Buy the Minebea 09225SA – Reliable Cooling Fan for Industrial Applications
Enhance your cooling systems with the efficient and reliable axial fan. Designed for industrial applications, it features a durable plastic casing, UL94V-0 rating, and ball bearings for long-lasting performance. Its high airflow capacity of up to 39.9 CFM and quiet operation make it perfect for panel or electronics cooling. Easy to install with panel out-cuts, it operates within a temperature range of -10°C to +70°C, ensuring optimal performance in demanding environments. Trust this fan for durable and efficient cooling solutions.
Order your Minebea Series 09225SA axial fan today and ensure reliable cooling with high airflow and durability for your industrial projects.
Frequently Asked Questions
Where can I buy NMB TECHNOLOGIES 09225SA12NEAD0?
You can click on the BUY or RFQ button to purchase 09225SA12NEAD0 from an authorized NMB TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 09225SA12NEAD0?
You can download the 09225SA12NEAD0 datasheet or visit the NMB TECHNOLOGIES website for support.
Who is the manufacturer of 09225SA12NEAD0?
NMB TECHNOLOGIES
