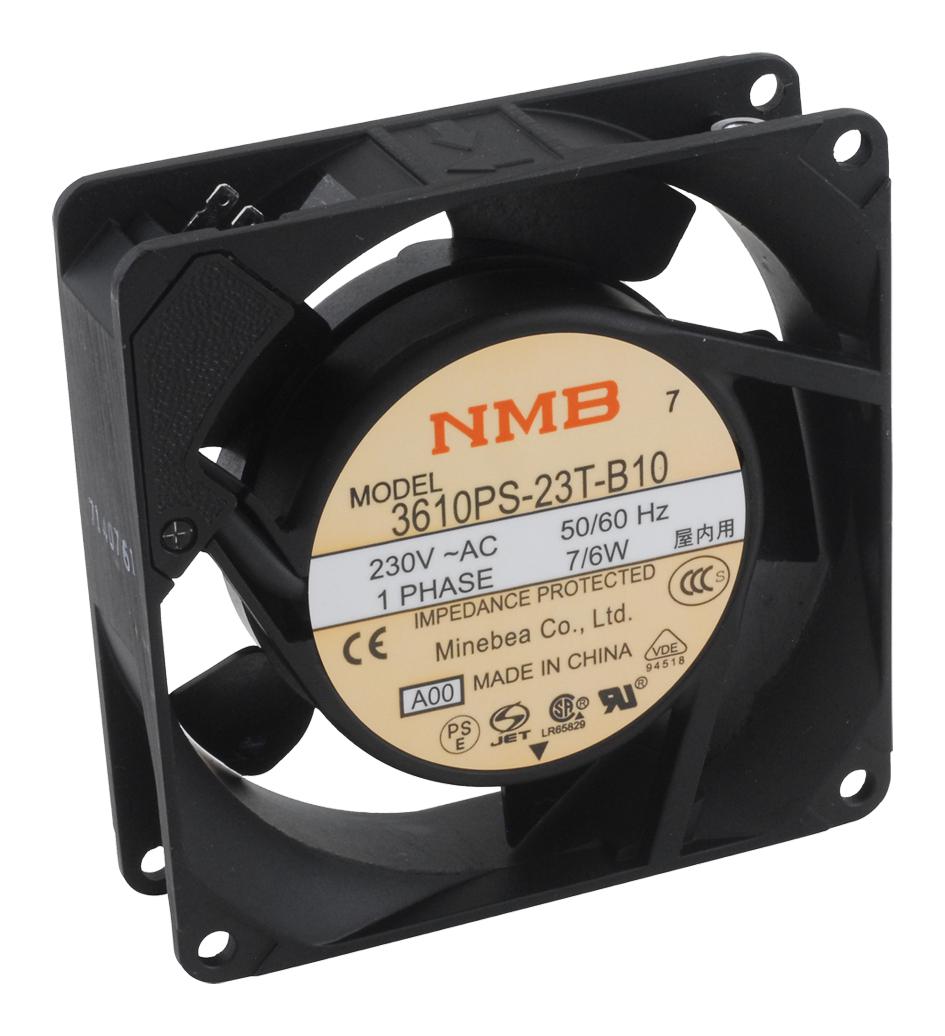

NMB TECHNOLOGIES 3610PS23TB10A00 Axial Fan
The 3610PS series AC axial fan features a propeller design that creates extensive airflow along the axis, efficiently exhausting hot air and drawing in cooler air to improve cooling performance in electronic components. Driven by a shaded pole induction motor, it provides impedance protection and boasts a high insulation resistance of 10 MΩ at 500VDC, with a dielectric withstand voltage of 700VAC. Operating effectively from -10°C to +70°C ambient temperature, it offers an expected lifespan of approximately 50,000 hours at 25°C. This fan is ideal for forced-air cooling in electronic devices, available in various voltage and frequency configurations for optimal cooling solutions.
NMB TECHNOLOGIES 3610PS23TB10A00 Axial Fan Specifications:
- Motor Structure: Shaded Pole Induction Motor
- Motor Protection: Impedance Protection
- Insulation Resistance: 10 MΩ at 500VDC
- Dielectric Withstand Voltage: AC 700V 1min
- Ambient Temperature Range: -10°C to +70°C operating, -40°C to +70°C storage
- Expected Life: Approximately 50,000 hours at 25°C
- Casing Material: Aluminum, Black paint
- Impeller Material: Plastic, UL94V-0
- Bearing: Ball Bearing
- Terminal: Faston #110 or equivalent
- Terminal Cover: Plastic, UL94V-2
- Fan Diameter: 92.5 mm (3.64 inches)
- Inlet/Outlet Side: Flange type, unit in mm (inch)
- Speed: varies with model, approximately 1450-3100 RPM
- Voltage: 100V, 115V, 200V, 230V options
- Frequency: 50Hz or 60Hz
- Noise Level: Ranges up to 39dB
- Mass: Approximate weight varies based on model, around 300g
Buy the NMB Series Axial Fan: 3610PS, Shaded Pole Induction Motor, 23100PS23TB10A00
Enhance your electronic device cooling with the NMB axial fan from the 3610PS series. Featuring a propeller design and shaded pole induction motor, this fan ensures efficient airflow for hot air exhaust and cooling. It offers impedance protection, a high insulation resistance of 10 MΩ at 500VDC, and operates safely within -10°C to +70°C ambient temperature. The fan is suitable for various voltages and frequencies, providing long-lasting performance of approximately 50,000 hours at 25°C. Purchase online today for reliable cooling solutions.
Buy NMB 3610PS fan now and experience unmatched reliability and high-performance cooling in electronic applications.
Frequently Asked Questions
Where can I buy NMB TECHNOLOGIES 3610PS23TB10A00?
You can click on the BUY or RFQ button to purchase 3610PS23TB10A00 from an authorized NMB TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 3610PS23TB10A00?
You can download the 3610PS23TB10A00 datasheet or visit the NMB TECHNOLOGIES website for support.
Who is the manufacturer of 3610PS23TB10A00?
NMB TECHNOLOGIES
