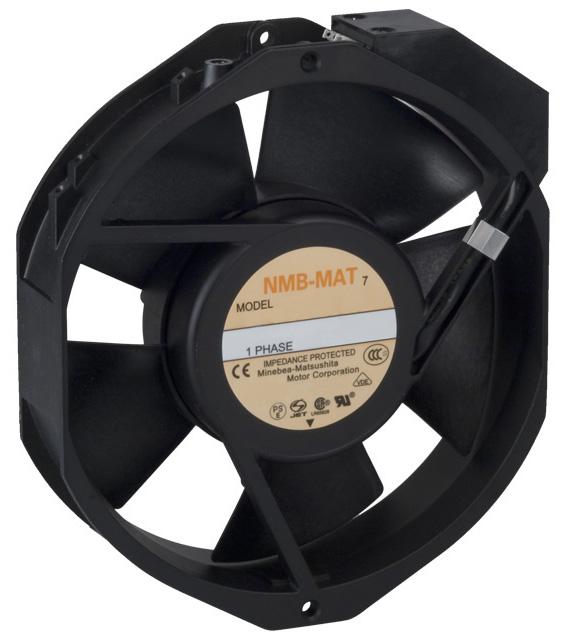

NMB TECHNOLOGIES 15038PBB3LEP00 Capacitor-Run Induction Fan
The NMB TECHNOLOGIES 15038PB-B3L-EP-00 is a capacitor-run induction fan engineered for demanding industrial environments. Its aluminum casing provides structural integrity, while the UL94V-0 plastic impeller ensures fire resistance. The fan's design incorporates a capacitor-run induction motor for efficient operation and impedance protection. Common applications include cooling electronic equipment, ventilation systems, and general industrial processes where reliable airflow is critical. The fan's robust construction and performance characteristics make it a dependable choice for a wide range of applications.
NMB TECHNOLOGIES 15038PBB3LEP00 Capacitor-Run Induction Fan Specifications:
- Motor Structure: Capacitor-Run Induction Motor
- Motor Protection: J ~ K Impedance Protection L Thermal Protection
- Insulation Resistance: 100M Ω or over with a DC500V Megger
- Dielectric Withstand Voltage: AC 1800V 3s
- Allowable Ambient Temperature Range (Operating): -10°C ~ +70°C
- Allowable Ambient Temperature Range (Storage): -40°C ~ +70°C
- Casing: Aluminum (Black Painting)
- Impeller: Plastic (Black) UL94V-0
- Bearing: Ball Bearing
- Lead Wire: SPT-1 2X0.824mm[2] AWG18
- Terminal: Faston #110 or equivalent
- Rated Voltage: 230V
- Frequency: 50Hz
- Starting Voltage: 145V
- Current: 0.180A
- Input Power: 34.0W
- Speed: 2700 min-1
- Max Air Flow: 176.5 CFM
- Max Air Flow (m3/min): 5.00 m3/min
- Max Static Pressure: 5.00 in H2O
- Max Static Pressure (Pa): 156.8 Pa
- Noise: 52.0 dB
- Mass: 800 g
