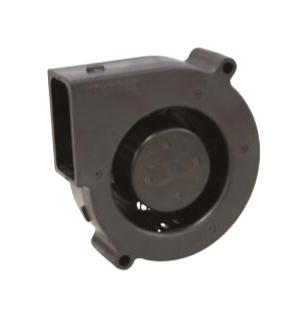

NMB TECHNOLOGIES 07525GA12NAA00 DC Blower Fan
The 07525GA12NAA00 is a compact DC blower fan designed for reliable operation in various environments. It features a ball bearing, plastic casing, and impeller with UL94V-0 flame rating, ensuring durability and safety. Operating efficiently at 12V with a current of 0.27A, it delivers high airflow of 153 m³/min and maximum static pressure of 90 Pa. Its rugged design includes insulation resistance above 10MQ and dielectric withstand voltage suitable for demanding applications, making it ideal for cooling electronic devices and ventilation systems.
NMB TECHNOLOGIES 07525GA12NAA00 DC Blower Fan Specifications:
- Voltage Rating: 12V DC
- Current: 0.27A
- Input Power: 3.24W
- Speed: 3600 RPM
- Max Air Flow: 153 m³/min
- Max Static Pressure: 90 Pa
- Noise Level: 48 dB
- Bearing Type: Ball Bearing
- Material: Plastic (Black) UL94V-0 casing and impeller
- Lead Wire: UL1007 AWG26, Red (+), Black (–)
- Insulation Resistance: 10MQ or over with a DCSO0V Megger
- Dielectric Withstand Voltage: 700V
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Flammability Rating: UL94V-0
- Protection: Auto Restart, Polarity Protection
Buy the Minebea Series DC Fan: 07525GA12NAA00
Purchase the Minebea Series DC blower fan model 07525GA12NAA00 online today and experience superior cooling performance. With high airflow of 153 m³/min, low noise, and reliable ball bearing technology, this fan is perfect for electronic cooling, ventilation, and industrial applications. Its UL94V-0 plastic casing and insulation resistance above 10MQ ensure safety and durability. Order now to enhance your projects with a compact, efficient, and dependable cooling solution that guarantees long operational life and optimal performance.
Order your Minebea Series DC fan, model 07525GA12NAA00 today and ensure reliable cooling with high airflow and durable construction for your electronic projects.
Frequently Asked Questions
Where can I buy NMB TECHNOLOGIES 07525GA12NAA00?
You can click on the BUY or RFQ button to purchase 07525GA12NAA00 from an authorized NMB TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 07525GA12NAA00?
You can download the 07525GA12NAA00 datasheet or visit the NMB TECHNOLOGIES website for support.
Who is the manufacturer of 07525GA12NAA00?
NMB TECHNOLOGIES
