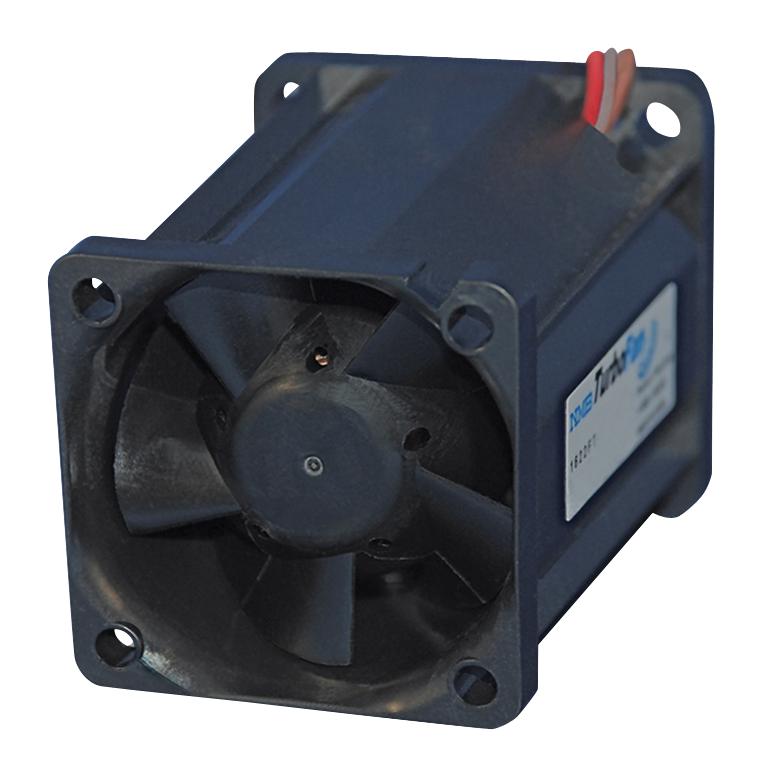

NMB TECHNOLOGIES 1622FT04WB86E00 Cooling Fan
The NMB-MAT 1622FT-04W-B86 fan features a 12V DC rated voltage, with a power consumption of 1.05W. It operates between 10V and 13.2V, delivering an airflow of 23,000 CFM at a maximum speed of 30,000 RPM. The fan includes a ball bearing, plastic casing, and impeller, all rated UL 94V-0 for flame retardancy. Designed for reliable performance, it has an insulation resistance minimum of 10MΩ at DC 500V, withstands up to 700V AC for 1 second, and performs optimally in ambient temperatures from -10°C to +60°C.
NMB TECHNOLOGIES 1622FT04WB86E00 Cooling Fan Specifications:
- Rated Voltage: 12V
- Power: 1.05W
- Speed: 30,000 RPM
- Airflow: 23,000 CFM
- Maximum Operating Voltage: 13.2V
- Minimum Operating Voltage: 10V
- Material: Plastic casing and impeller (UL 94V-0)
- Bearing: Ball bearing
- Insulation Resistance: Min 10MΩ at DC 500V
- Dielectric Withstand Voltage: AC 700V for 1 second
- Ambient Operating Temperature Range: -10°C to +60°C
- Material Flame Rating: UL 94V-0
- Lead Wires: UL10368, AWG24, Red and Black
- Tach Signal: White
- Control Voltage Range: 0V to 5V
- Weight: 68g
Buy the NMB Series 1622FT Fan: 1622FT04WB86E00
Purchase the NMB Series 1622FT04WB86E00 cooling fan online today to enjoy a reliable and efficient solution for your ventilation needs. This high-performance fan features a maximum speed of 30,000 RPM, an airflow of 23,000 CFM, and is crafted from flame-retardant UL 94V-0 rated plastic. Its ball bearing ensures long life and consistent operation, while the wide voltage range provides flexible power options. Ideal for electronic cooling, industrial ventilation, and equipment ventilation, this fan guarantees durability and efficiency in various environments.
Get NMB Series 1622FT04WB86E00 today—built for precision and long-lasting durability in cooling applications.
Frequently Asked Questions
Where can I buy NMB TECHNOLOGIES 1622FT04WB86E00?
You can click on the BUY or RFQ button to purchase 1622FT04WB86E00 from an authorized NMB TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 1622FT04WB86E00?
You can download the 1622FT04WB86E00 datasheet or visit the NMB TECHNOLOGIES website for support.
Who is the manufacturer of 1622FT04WB86E00?
NMB TECHNOLOGIES
