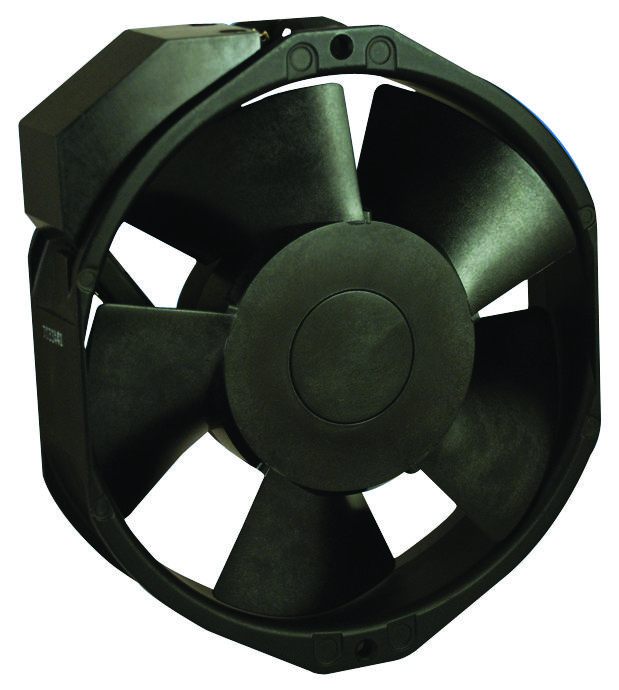

NMB TECHNOLOGIES 15038PBB0LEP00 Capacitor-Run Induction Motor
The NMB TECHNOLOGIES 15038PB-B0L-EP-00 is a high-performance AC axial fan motor engineered for demanding industrial environments. Its capacitor-run induction motor design ensures efficient operation and reliable performance. Constructed with an aluminum casing and plastic impeller (UL94V-0), this motor is built for durability and safety. Commonly used in ventilation systems, cooling equipment, and other applications requiring consistent airflow, the 15038PB-B0L-EP-00 offers a balance of power and efficiency. It's a dependable choice for maintaining optimal operating temperatures and air quality in various industrial settings.
NMB TECHNOLOGIES 15038PBB0LEP00 Capacitor-Run Induction Motor Specifications:
- Motor Structure: Capacitor-Run Induction Motor
- Motor Protection: J ~ K Impedance Protection L Thermal Protection
- Insulation Resistance: 100M Ω or over with a DC500V Megger
- Dielectric Withstand Voltage: AC 1800V 3s
- Allowable Ambient Temperature Range (Operating): -10°C ~ +70°C
- Allowable Ambient Temperature Range (Storage): -40°C ~ +70°C
- Casing: Aluminum (Black Painting)
- Impeller: Plastic (Black) UL94V-0
- Bearing: Ball Bearing
- Lead Wire: SPT-1 2X0.824mm[2] AWG18
- Terminal: Faston #110 or equivalent
- Rated Voltage: 200V
- Frequency: 50Hz
- Starting Voltage: 130V
- Current: 0.236A
- Input Power: 34.0W
- Speed: 2700 min-1
- Max Air Flow: 176.5 CFM
- Max Air Flow (m3/min): 5.00
- Max Static Pressure: 215.6 Pa
- Noise: 52.0 dB
- Mass: 800 g
Buy the 15038PB-B0L-EP-00 NMB TECHNOLOGIES Capacitor-Run Induction Motor | myMectronic
Purchase the NMB TECHNOLOGIES 15038PB-B0L-EP-00 fan motor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy NMB TECHNOLOGIES 15038PBB0LEP00?
You can click on the BUY or RFQ button to purchase 15038PBB0LEP00 from an authorized NMB TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 15038PBB0LEP00?
You can download the 15038PBB0LEP00 datasheet or visit the NMB TECHNOLOGIES website for support.
Who is the manufacturer of 15038PBB0LEP00?
NMB TECHNOLOGIES
