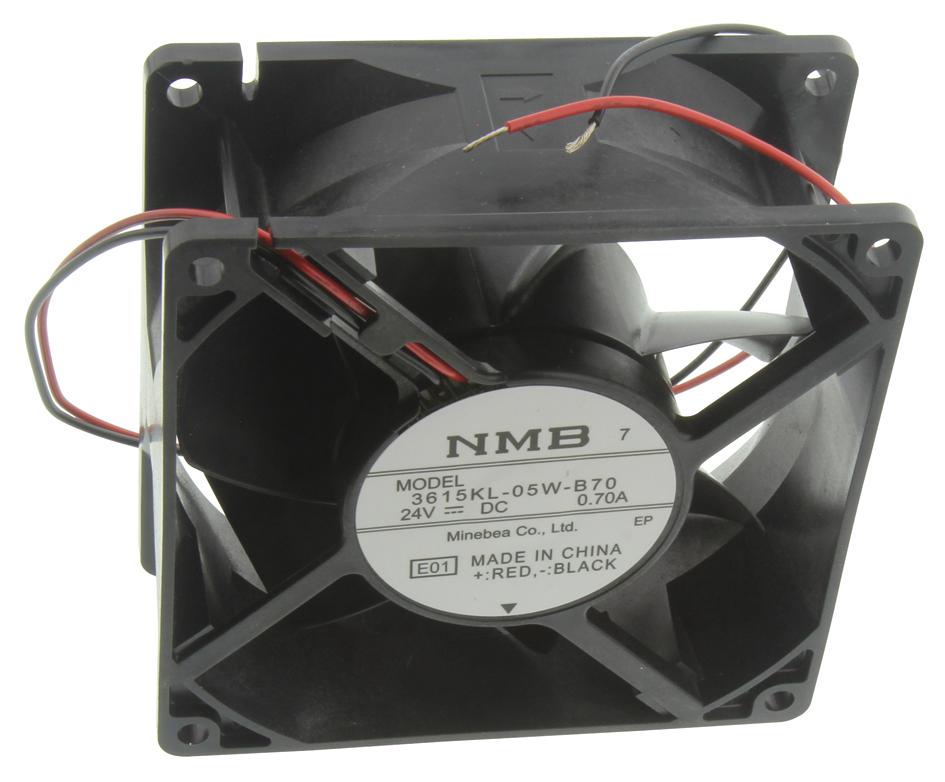

NMB-TECHNOLOGIES 3615KL05WB70E01 Axial Fan
The 3615KL-05W-B70-E00 is a 24V DC axial fan designed for efficient heat dissipation in electronic cooling systems. It features a black plastic casing, ball bearings for durability, and UL1061-compliant impeller blades. Rated at 0.7A, it provides clockwise airflow with a static pressure of 189 Pa, suitable for various cooling applications. The fan offers auto restart and polarity protection, with an operating temperature range from -10°C to 70°C, and a high insulation resistance exceeding 10 MΩ. It can withstand dielectric withstand voltage of 700VAC, ensuring reliability in demanding environments.
NMB-TECHNOLOGIES 3615KL05WB70E01 Axial Fan Specifications:
- Voltage: 24V DC
- Rated Current: 0.7A
- Speed: 5800 RPM
- Airflow: 189 Pa static pressure
- Fan Material: Plastic (Black) 94V-0
- Impeller: UL1061 compliant plastic
- Bearing: Ball bearing
- Connection: Lead wire, UL1061, AWG26, Red and Black leads
- Operating Temperature Range: -10°C to 70°C
- Insulation Resistance: Over 10 MΩ at 500V
- Dielectric Withstand Voltage: AC 700V for 1 second
- Rotation: Clockwise
- Inlet/Outlet Side: Air out over struts
- Mass: 210 grams
- Dimensions: Not specified but compatible with panel cut-outs of 169 mm diameter
- Certifications: UL Listing
Buy the Buy NMB Axial Fan Part Number 3615KL05WB70E01 Online
Purchase the NMB axial fan online today for reliable cooling performance in electronic systems. Equipped with ball bearings, UL1061-compliant impeller, and a 24V DC motor, this fan offers high static pressure and efficient heat dissipation. Its features include auto restart, polarity protection, and withstands dielectric voltage of 700VAC, ensuring durability and safety. Designed for temperatures between -10°C and 70°C, it is ideal for industrial and electronic cooling applications, providing long-lasting dependable operation for demanding environments.
Get NMB 3615KL-05W-B70-E00 today—built for precision cooling with high static pressure and reliable operation in demanding electronic environments.
Frequently Asked Questions
Where can I buy NMB-TECHNOLOGIES 3615KL05WB70E01?
You can click on the BUY or RFQ button to purchase 3615KL05WB70E01 from an authorized NMB-TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 3615KL05WB70E01?
You can download the 3615KL05WB70E01 datasheet or visit the NMB-TECHNOLOGIES website for support.
Who is the manufacturer of 3615KL05WB70E01?
NMB-TECHNOLOGIES
