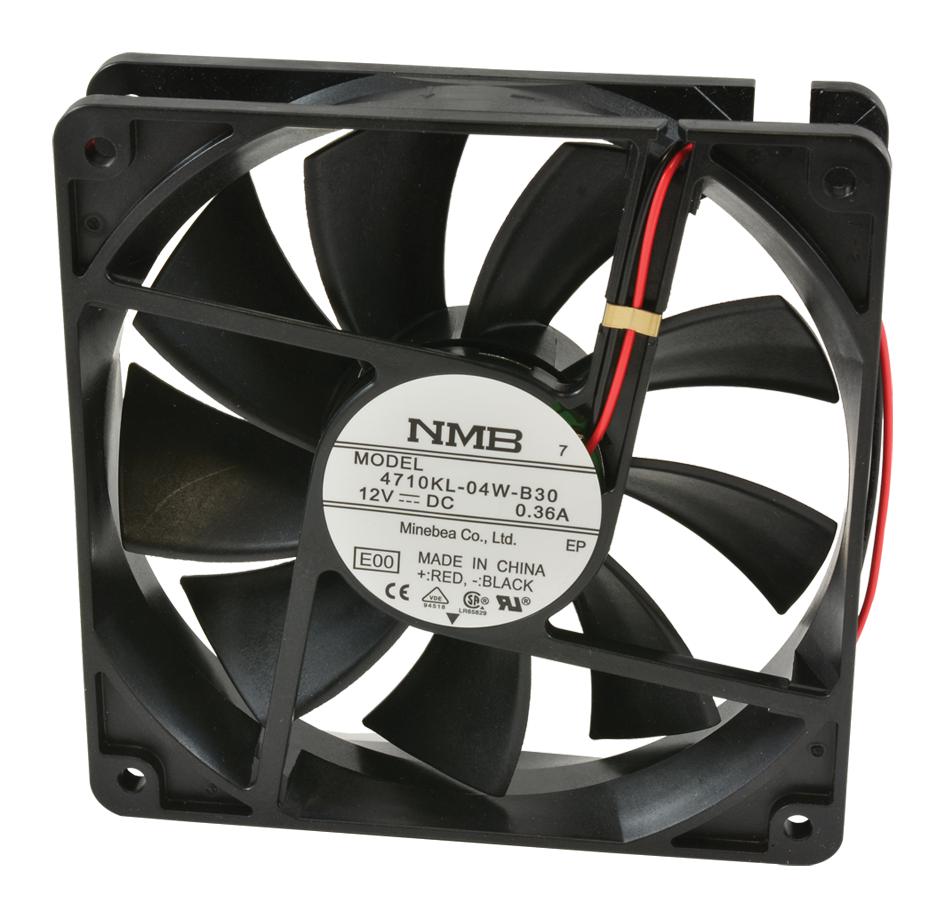

NMB TECHNOLOGIES 4710KL04WB30E00 Axial Fan
The 4710KL-04W-B30-E00 is a 12V DC axial fan designed for effective cooling and heat dissipation in electronic and industrial applications. Constructed with a black plastic casing (UL 94V-0), it features ball bearings for durability and a UL1007 wire lead with AWG24 conductors for reliable power connection. This fan offers a static pressure of 32.3 Pa, a maximum airflow of 2200 CFM, and operates within a temperature range of -10°C to 70°C, with insulation resistance over 10 MΩ, ensuring dependable performance even in demanding environments. Its automatic restart and polarity protection enhance safety and longevity.
NMB TECHNOLOGIES 4710KL04WB30E00 Axial Fan Specifications:
- Voltage Range: 12V DC (Operating: 60-138V)
- Power: 0.28 W
- Airflow: 2200 CFM
- Static Pressure: 32.3 Pa
- Operating Temperature: -10°C to 70°C
- Insulation Resistance: >10 MΩ with DC 500V Megger
- Bearing: Ball Bearing
- Material: Black plastic (UL 94V-0)
- Lead Wire: UL1007, AWG24, +Red, -Black
- Dielectric Withstand Voltage: AC 700V 1s
- Features: Auto Restart, Polarity Protection
Buy the NMB-MAT Series 4710KL Axial Fan: 4710KL-04W-B30-E00
Enhance your electronic cooling system with the NMB-MAT Series axial fan. Designed for durability and efficiency, this 12V DC fan features ball bearings and UL 94V-0 plastic casing, offering a static pressure of 32.3 Pa and airflow of 2200 CFM. It withstands temperatures from -10°C to 70°C and includes automatic restart and polarity protection for safety. Easy to install with UL 1007 wire leads, this fan is ideal for industrial, electronic, and heat dissipation applications. Buy online today for dependable cooling performance.
Order your NMB-MAT Series 4710KL-04W-B30-E00 axial fan today and ensure efficient cooling with reliable automatic restart and polarity protection.
Frequently Asked Questions
Where can I buy NMB TECHNOLOGIES 4710KL04WB30E00?
You can click on the BUY or RFQ button to purchase 4710KL04WB30E00 from an authorized NMB TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 4710KL04WB30E00?
You can download the 4710KL04WB30E00 datasheet or visit the NMB TECHNOLOGIES website for support.
Who is the manufacturer of 4710KL04WB30E00?
NMB TECHNOLOGIES
