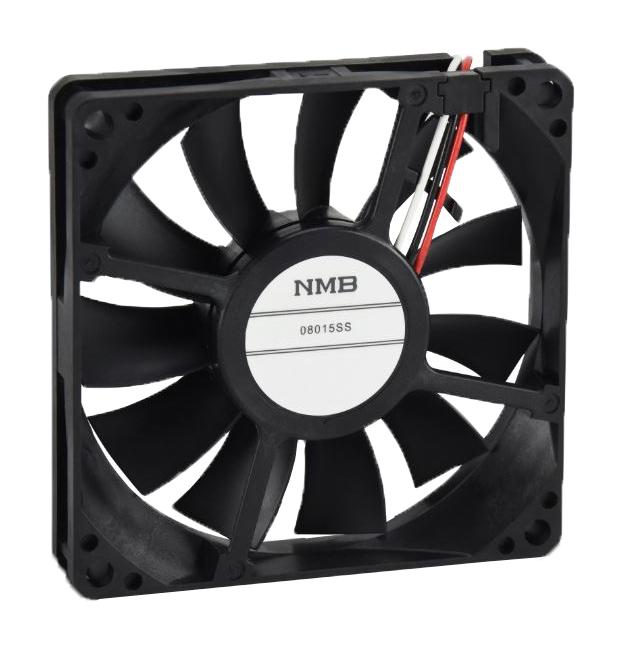

NMB TECHNOLOGIES 08015SS24NAA00 industrial axial fan
This 80mm axial fan from MinebeaMitsumi is designed for reliable cooling in industrial and electronic applications. It features a compact 15mm frame depth, a sleeve bearing for durability, and operates efficiently at 24V with a current of 0.12A. The fan delivers up to 33.9 CFM airflow with a maximum static pressure of 0.14 inches H2O and noise level of 34dB. With a lifespan of 40,000 hours at 40°C, this fan ensures long-lasting performance in demanding environments. Ideal for ventilation, cooling, and electronic equipment cooling solutions.
NMB TECHNOLOGIES 08015SS24NAA00 industrial axial fan Specifications:
- Frame Width: 80mm
- Frame Height: 80mm
- Frame Depth: 15mm
- Max. Air Flow: 33.9 CFM
- Max. Air Flow: 0.96 m3 per min
- Max. Static Pressure: 0.14 inches H2O
- Max. Static Pressure: 34 Pa
- Fan Speed: 3100 RPM
- Noise: 34 dB
- Life Expectancy: 40,000 Hours at 40°C
- Bearing Type: Sleeve Bearing
- Nominal Voltage: 24 V
- Operating Voltage - Lower: 12 V
- Operating Voltage - Upper: 26.4 V
- Current: 0.12 A
- Input Power: 2.9 W
- Mass: Not specified
Buy the MinebeaMitsumi 08015SS24NAA00 – Reliable Axial Fan for Industrial Applications
Purchase the MinebeaMitsumi axial fan 08015SS24NAA00 online today to benefit from high airflow efficiency and durability. This 80mm fan with sleeve bearing guarantees longevity with a lifespan of 40,000 hours at 40°C. Its compact design, operating at 24V with a maximum current of 0.12A, makes it ideal for cooling electronic components, ventilation systems, and industrial equipment. Enjoy fast delivery and trusted quality for your cooling solutions.
Order your MinebeaMitsumi 08015SS24NAA00 axial fan today and ensure efficient cooling with long-lasting reliability for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy NMB TECHNOLOGIES 08015SS24NAA00?
You can click on the BUY or RFQ button to purchase 08015SS24NAA00 from an authorized NMB TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 08015SS24NAA00?
You can download the 08015SS24NAA00 datasheet or visit the NMB TECHNOLOGIES website for support.
Who is the manufacturer of 08015SS24NAA00?
NMB TECHNOLOGIES
