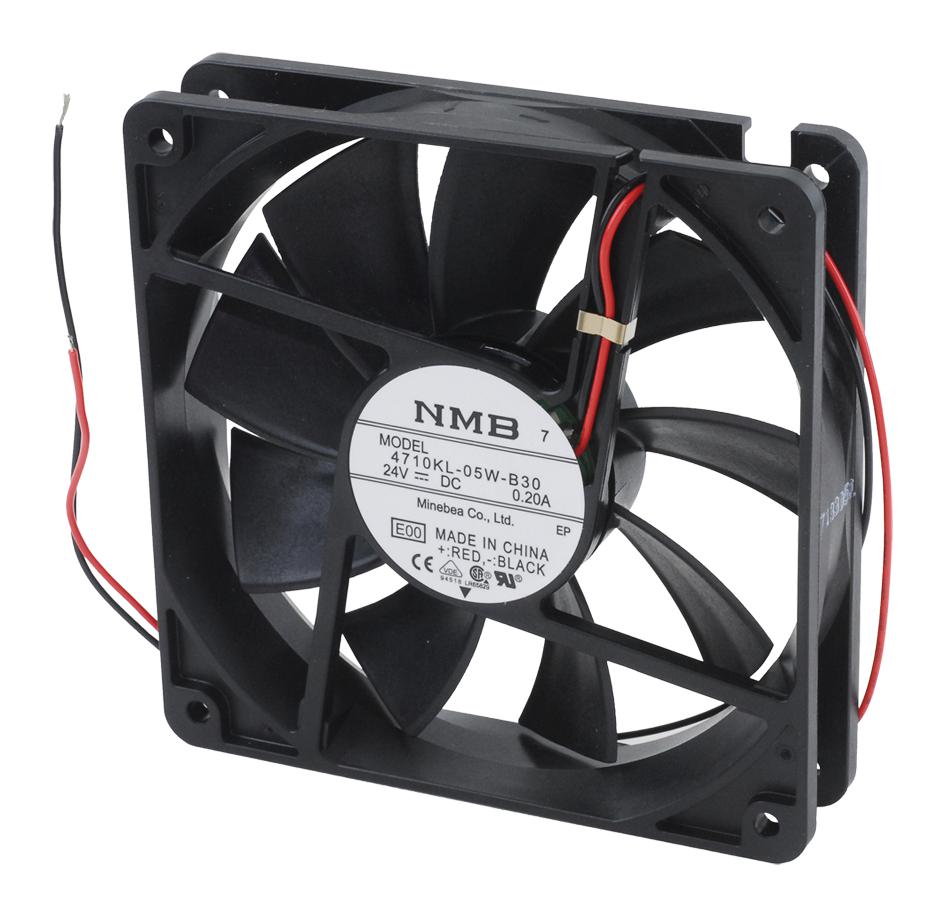

NMB TECHNOLOGIES 4710KL05WB30E00 Axial Fan
The 4710KL-05W-B30-E00 is a 24V DC axial fan designed for optimal cooling and ventilation applications. It features a durable black plastic casing and impeller rated UL94V-0, ensuring fire safety. The fan operates at 2200 RPM, with a power consumption of 3.6W and a static pressure of 0.13 inches H2O. It includes a ball bearing for extended lifespan, wire leads with UL1007 24 AWG cables in red and black for positive and negative connections, auto restart and polarity protection for reliability, and a temperature range of -10°C to 70°C. With insulation resistance exceeding 10MΩ at 500V, it is ideal for electronics cooling in various environments.
NMB TECHNOLOGIES 4710KL05WB30E00 Axial Fan Specifications:
- Voltage: 24V DC
- Rated Power: 3.6W
- Speed: 2200 RPM
- Air Flow: 13 CFM
- Static Pressure: 0.13 inches H2O
- Dimension (Approximate): 80mm x 80mm x 25mm
- Bearing: Ball Bearing
- Casing Material: Plastic (Black), UL94V-0 rated
- Impeller Material: Plastic (Black), UL94V-0 rated
- Wire Lead: UL1007, AWG24, Red (+), Black (-)
- Insulation Resistance: >10 MΩ at 500V DC
- Dielectric Withstand Voltage: AC 700V 1s
- Operating Temperature Range: -10°C to 70°C
- Mounting: Flanged
- Rotation: Clockwise Airflow
- Features: Auto Restart, Polarity Protection
Buy the NMB Series 4710KL Axial Fan: 24V DC, 2200 RPM, Part Number 4710KL-05W-B30-E00
Purchase the NMB 4710KL-05W-B30-E00 axial fan online today and enjoy fast shipping, superior quality, and dependable performance. Designed for electronics cooling and ventilation, this 24V fan features a durable black plastic casing, UL94V-0 flammability rating, and a ball bearing for longevity. With a reliable DC motor operating at 2200 RPM, it provides efficient airflow and static pressure of 0.13 inches H2O. Featuring auto restart, polarity protection, and insulation resistance exceeding 10MΩ, it ensures your equipment stays cool and protected in demanding environments.
Buy NMB 4710KL-05W-B30-E00 axial fan now and experience unmatched reliability, efficient cooling, and enhanced electronic device protection with top-tier features.
Frequently Asked Questions
Where can I buy NMB TECHNOLOGIES 4710KL05WB30E00?
You can click on the BUY or RFQ button to purchase 4710KL05WB30E00 from an authorized NMB TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part 4710KL05WB30E00?
You can download the 4710KL05WB30E00 datasheet or visit the NMB TECHNOLOGIES website for support.
Who is the manufacturer of 4710KL05WB30E00?
NMB TECHNOLOGIES
