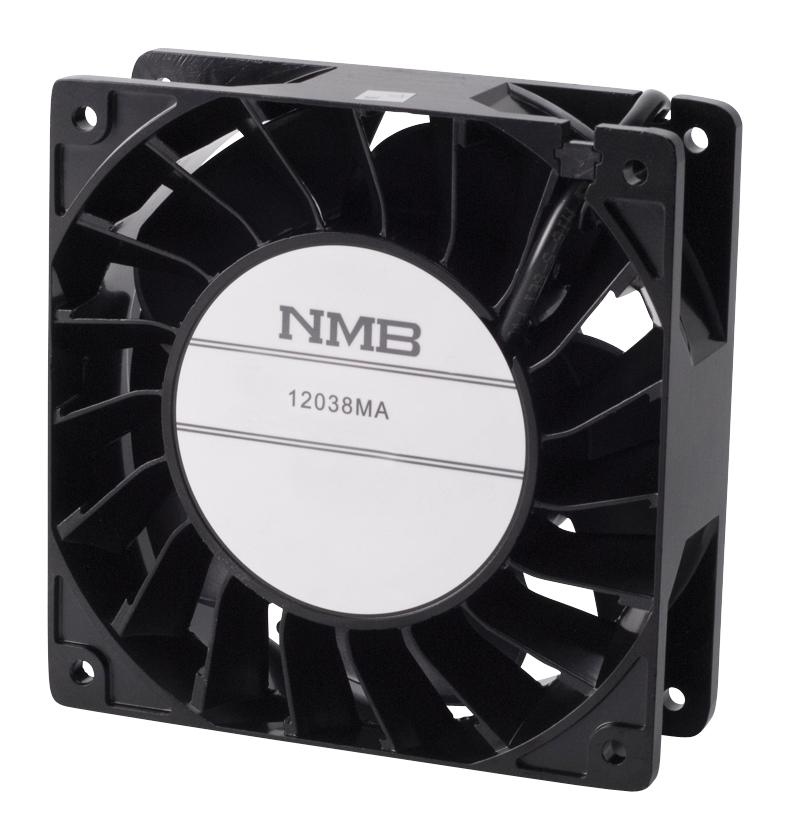

NMB TECHNOLOGIES 12038MA48REE00 Axial Fan Motor
The NMB TECHNOLOGIES 12038MA-48R-EE-00 is a robust 48V axial fan motor suitable for a wide range of industrial applications. It boasts an airflow of 185.4 CFM and a static pressure of 5.25 in H2O, ensuring efficient cooling. The motor incorporates features like auto restart and polarity protection for enhanced reliability. Constructed with an aluminum casing, plastic impeller (UL94V-0), and ball bearings, this fan is built to withstand demanding environments. Available with PWM, locked rotor, and tach capabilities for precise control and monitoring.
NMB TECHNOLOGIES 12038MA48REE00 Axial Fan Motor Specifications:
- Motor Protection: Auto Restart/Polarity Protection
- Insulation Resistance: 10M Ω or over with a DC500V Megger
- Dielectric Withstand Voltage: AC 700V 1s
- Allowable Ambient Temperature Range (Operating): -10°C ~ +70°C
- Allowable Ambient Temperature Range (Storage): -30°C ~ +70°C
- Expected Life: 40°C 40,000 Hours (L10)
- Rated Voltage: 48V
- Operating Voltage: 38.0 ~ 60.0V
- Current: 0.82A
- Input Power: 39.36W
- Speed: 9000 RPM
- Air Flow: 185.4 CFM
- Static Pressure: 5.25 in H2O
- Noise: 740 dB
- Mass: 72.0 g
- Airflow Outlet: Air Out Over Struts
- Rotation: Clockwise
- Casing Material: Aluminum (Black)
- Impeller Material: Plastic (Black) UL94V-0
- Bushing Material: Plastic (Black) UL94V-2
- Bearing Type: Ball Bearing
- Lead Wire: UL10368, AWG22, +Red, -Black
